Plan Enforcement

Runtime enforcement of workspace plan limits using Redis atomic counters, subscription-aware billing periods, lazy DB reconciliation, and fail-closed error handling.

Overview

Every workflow execution passes through PlanEnforcementService before it can run. The service checks:

Check	When	Limit source
Execution quota	Before execution starts	WorkspacePlan.MaxExecutions
Concurrent executions	Before execution starts	WorkspacePlan.MaxConcurrentExecutions
Tasks per execution	During Run() loop	WorkspacePlan.MaxTasksPerExecution
Execution timeout	During Run() loop	WorkspacePlan.MaxExecutionDurationMinutes
Payload size	During Run() loop	WorkspacePlan.MaxExecutionPayloadSizeMb

Pre-execution checks (quota + concurrent) use Redis atomic counters. Runtime checks (tasks, timeout, payload) query the in-memory plan cache directly.

Architecture

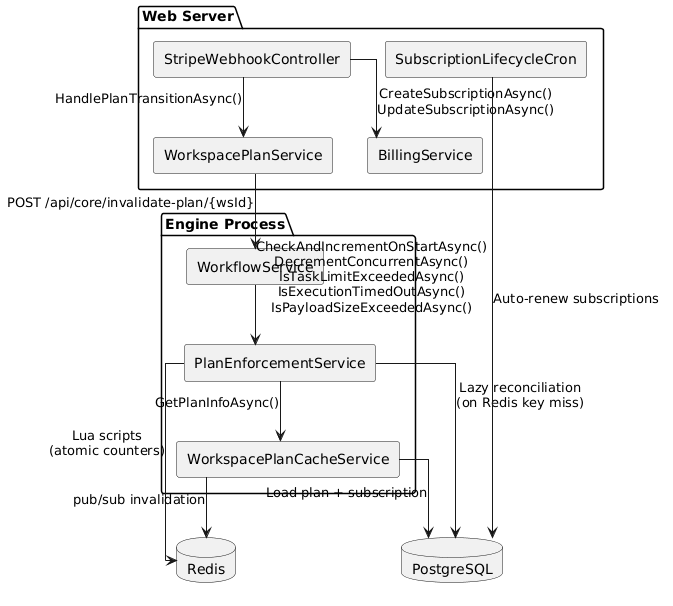

Component Overview

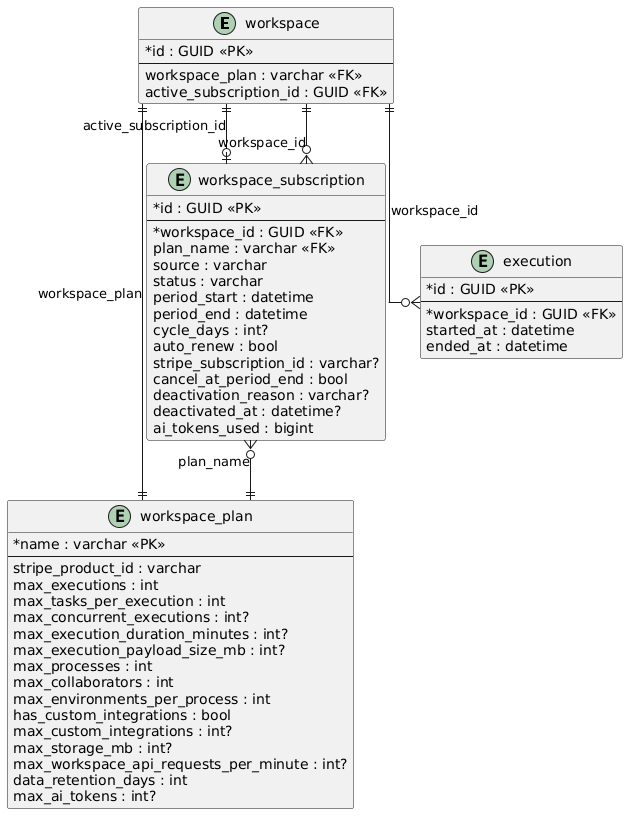

Data Model

Redis Key Schema

Execution Flow

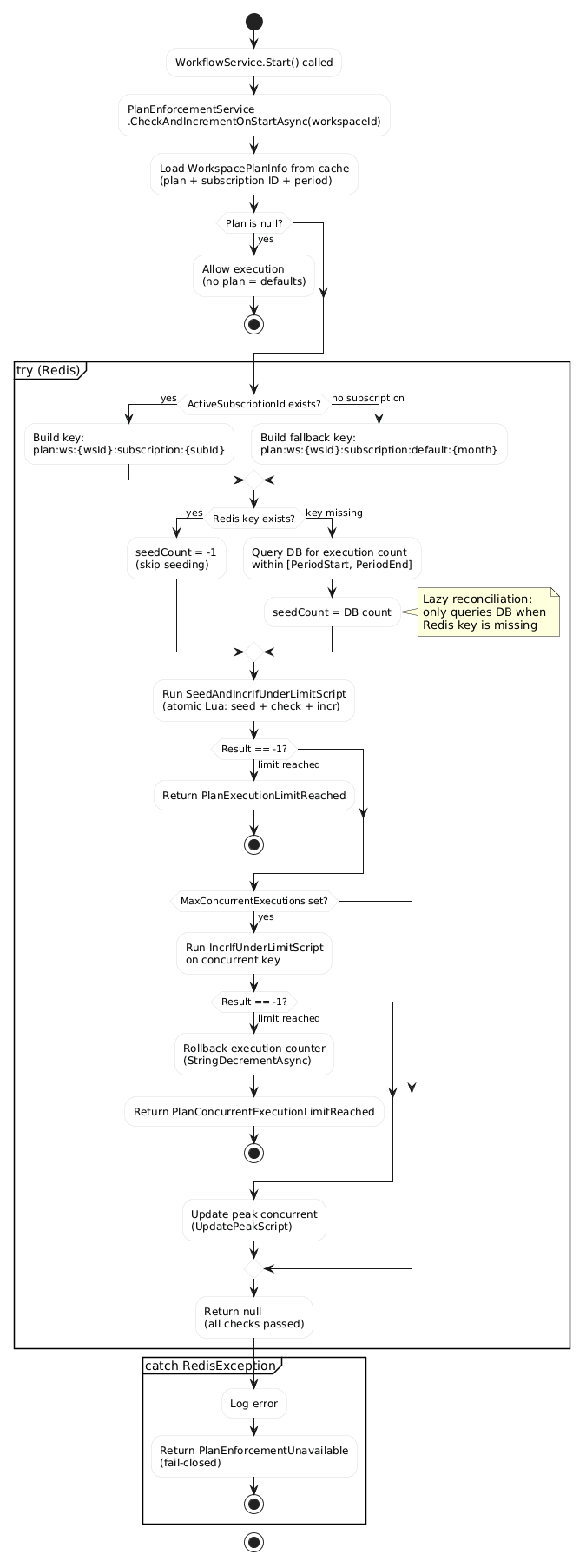

Pre-Execution Enforcement

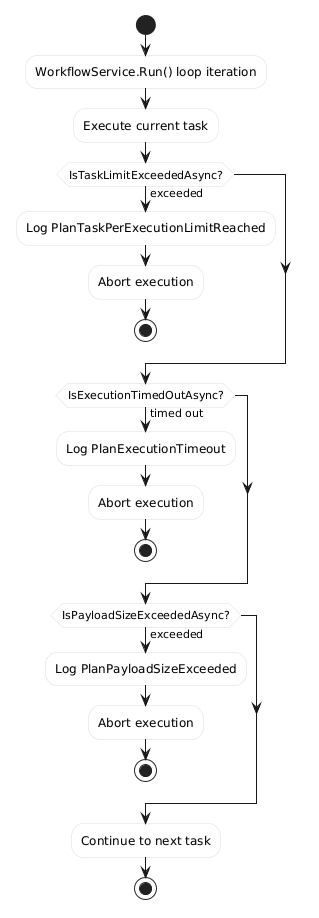

Runtime Enforcement (during Run loop)

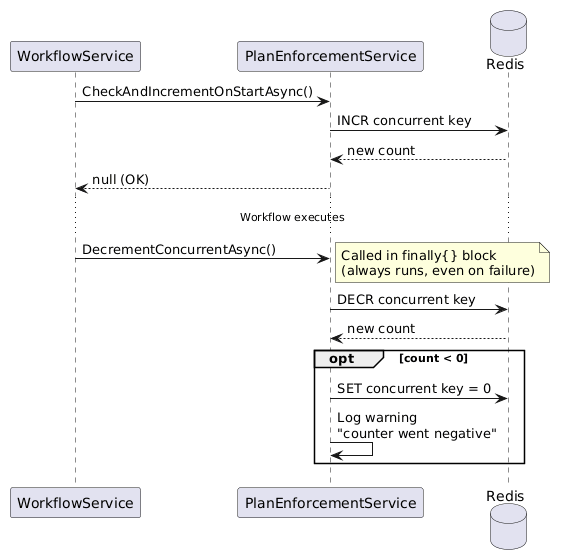

Concurrent Counter Lifecycle

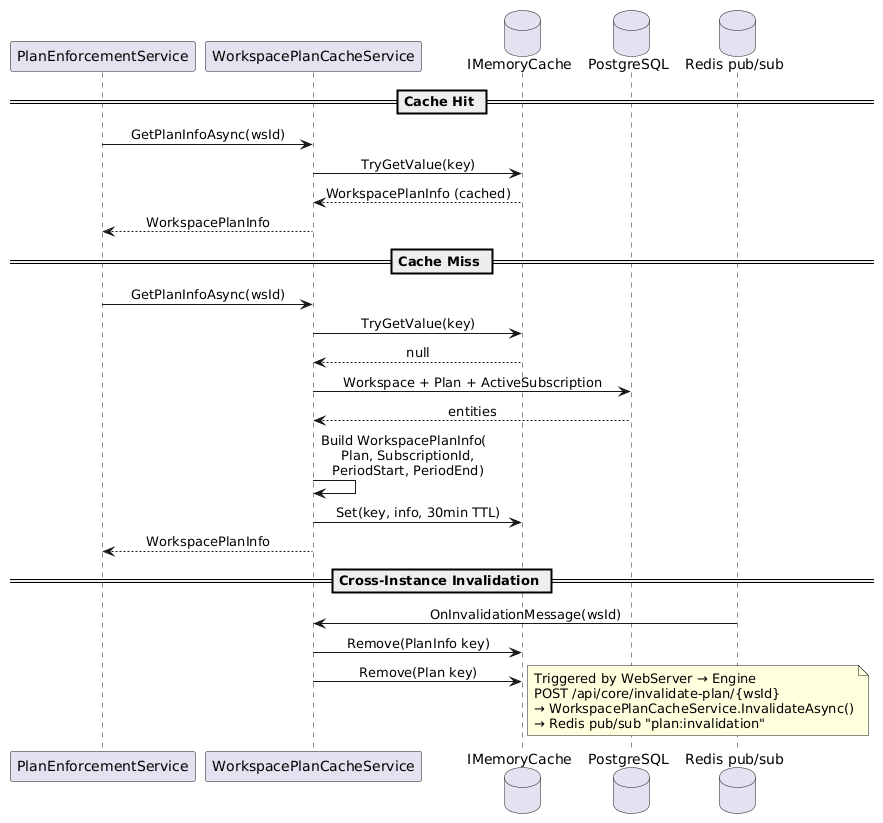

Caching Layer

WorkspacePlanCacheService

WorkspacePlanInfo DTO

record WorkspacePlanInfo(
    WorkspacePlan? Plan,
    Guid? ActiveSubscriptionId,
    DateTime PeriodStart,
    DateTime PeriodEnd
)

• Plan — the workspace_plan row with all limit values
• ActiveSubscriptionId — the subscription GUID used as Redis key discriminator
• PeriodStart / PeriodEnd — billing period from active subscription; fallback to calendar month if no subscription

Lua Scripts

SeedAndIncrIfUnderLimitScript

Used for the execution quota counter. Handles lazy reconciliation atomically.

-- KEYS[1] = counter key
-- ARGV[1] = limit
-- ARGV[2] = TTL in seconds
-- ARGV[3] = seed value (-1 = skip seeding)

local exists = redis.call('EXISTS', KEYS[1])
if exists == 0 and tonumber(ARGV[3]) >= 0 then
    redis.call('SET', KEYS[1], ARGV[3])
    if tonumber(ARGV[2]) > 0 then
        redis.call('EXPIRE', KEYS[1], ARGV[2])
    end
end
local current = tonumber(redis.call('GET', KEYS[1]) or '0')
if current >= tonumber(ARGV[1]) then
    return -1   -- limit reached
end
local newVal = redis.call('INCR', KEYS[1])
if tonumber(ARGV[2]) > 0 then
    redis.call('EXPIRE', KEYS[1], ARGV[2])
end
return newVal   -- new count after increment

Behavior:

1. If key doesn't exist and seed >= 0 → SET key to seed value
2. Check if current count >= limit → return -1 (blocked)
3. Otherwise INCR and return new value

IncrIfUnderLimitScript

Used for the concurrent execution counter (no seeding needed).

local current = tonumber(redis.call('GET', KEYS[1]) or '0')
if current >= tonumber(ARGV[1]) then
    return -1
end
local newVal = redis.call('INCR', KEYS[1])
if tonumber(ARGV[2]) > 0 then
    redis.call('EXPIRE', KEYS[1], ARGV[2])
end
return newVal

UpdatePeakScript

Tracks the highest concurrent execution count seen in the billing period.

local current = tonumber(redis.call('GET', KEYS[1]) or '0')
local newVal = tonumber(ARGV[1])
if newVal > current then
    redis.call('SET', KEYS[1], newVal)
    if tonumber(ARGV[2]) > 0 then
        redis.call('EXPIRE', KEYS[1], ARGV[2])
    end
end
return current

Subscription Lifecycle and Counter Reset

The execution counter is keyed by subscription GUID. When a subscription renews, a new row with a new GUID is created, which means the Redis counter key is naturally fresh.

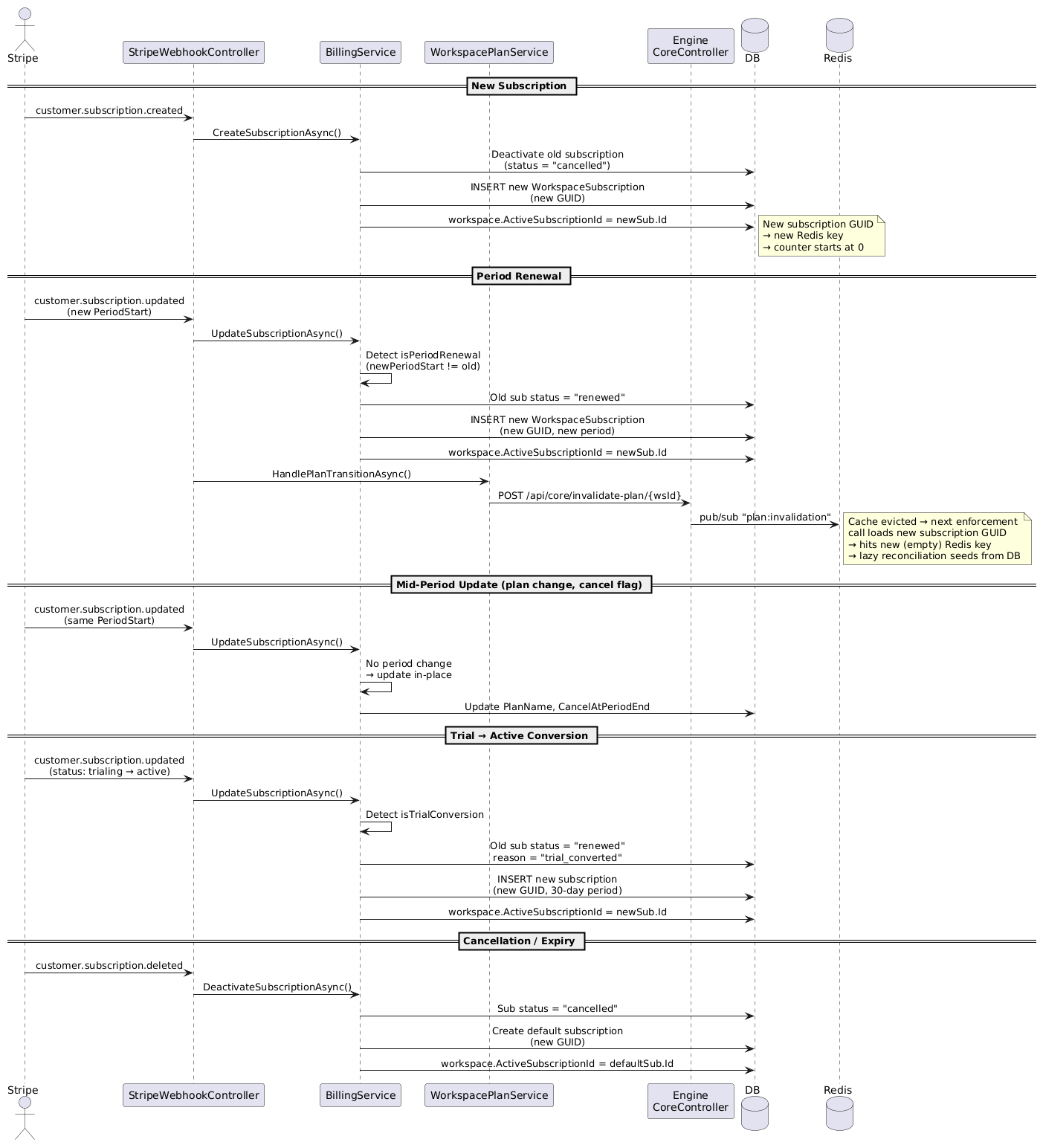

Stripe Subscription Lifecycle

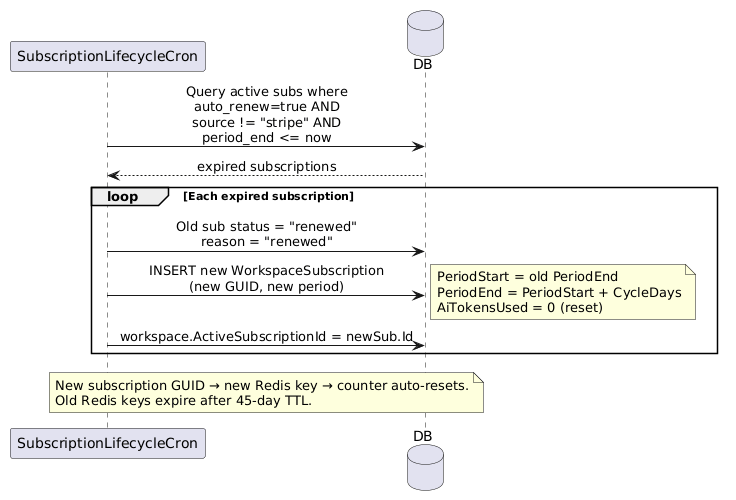

Enterprise / System Auto-Renewal

Error Codes

Code	Enum	Meaning
9001	PlanExecutionLimitReached	Billing period execution quota exhausted
9002	PlanConcurrentExecutionLimitReached	Too many simultaneous executions
9003	PlanTaskPerExecutionLimitReached	Single execution exceeded max tasks
9004	PlanExecutionTimeout	Execution exceeded max duration
9005	PlanRateLimitExceeded	Rate limit exceeded (reserved)
9006	PlanPayloadSizeExceeded	Request/response payload too large
9007	PlanStorageLimitReached	Blob storage limit exceeded
9008	PlanEnforcementUnavailable	Redis unavailable, execution blocked (fail-closed)

Design Decisions

Decision	Choice	Rationale
Redis key discriminator	ActiveSubscriptionId (GUID)	Auto-resets on renewal, no date ambiguity
Redis failure mode	Fail-closed (block execution)	Prevents quota abuse when enforcement is unavailable
Reconciliation strategy	Lazy (on key miss)	No cron needed; DB query only on rare cache miss
Seed atomicity	Lua script with EXISTS guard	Prevents race conditions between concurrent requests
Subscription renewal	New DB row (new GUID)	Redis counter key resets without explicit deletion
Cache invalidation	Redis pub/sub	Works across multiple engine instances
Cache TTL	30 minutes	Balances freshness vs DB load
Redis counter TTL	45 days	Outlives any billing cycle; stale keys expire naturally
Concurrent counter TTL	24 hours	Self-heals if counter leaks due to crashes
No active subscription	Allow with defaults	Matches existing behavior for default-plan workspaces

File Reference

Component	Path	Role
IPlanEnforcementService	WorkflowEngine/Services/Interfaces/IPlanEnforcementService.cs	Interface: pre-start checks, runtime checks, decrement
PlanEnforcementService	WorkflowEngine/Services/PlanEnforcementService.cs	Redis counters, Lua scripts, lazy reconciliation, fail-closed
WorkspacePlanCacheService	WorkflowEngine/Services/WorkspacePlanCacheService.cs	In-memory cache + Redis pub/sub invalidation
WorkspacePlanInfo	WorkflowEngine/Services/WorkspacePlanCacheService.cs	DTO: Plan + SubscriptionId + PeriodStart + PeriodEnd
WorkflowService	WorkflowEngine/Services/WorkflowService.cs	Caller: Start() and Run() loop enforcement
CoreController	WorkflowEngine/Controllers/CoreController.cs	/api/core/invalidate-plan/{wsId} endpoint
WorkspacePlan	WorkflowEngineLibrary/Core/Models/WorkspacePlan.cs	Plan limits entity
WorkspaceSubscription	WorkflowEngineLibrary/Core/Models/WorkspaceSubscription.cs	Subscription entity (billing period, status)
Workspace	WorkflowEngineLibrary/Core/Models/Workspace.cs	ActiveSubscriptionId FK
ErrorCode	WorkflowEngineLibrary/Core/Errors/ErrorCode.cs	Plan error codes (9001-9008)
BillingService	WorkflowEngineWeb/Server/Services/Implementations/BillingService.cs	Subscription create/update/deactivate
StripeWebhookController	WorkflowEngineWeb/Server/Controllers/StripeWebhookController.cs	Stripe event handling
WorkspacePlanService	WorkflowEngineWeb/Server/Services/Implementations/WorkspacePlanService.cs	Plan transitions + engine notification
SubscriptionLifecycleCron	WorkflowEngineWeb/Server/Services/Implementations/SubscriptionLifecycleCron.cs	Auto-renewal, expiry, trial handling
DI Registration	WorkflowEngine/Program.cs	Singleton: WorkspacePlanCacheService, Scoped: PlanEnforcementService
MockPlanEnforcementService	WorkflowEngine.Test/Mocks/MockPlanEnforcementService.cs	Test mock: always allows all operations
