Unified Billing Architecture Proposal

This document proposes a redesign of the billing data model to unify Stripe and Enterprise billing into a single, maintainable system with full subscription lifecycle tracking.

Problem Statement

The current architecture has two parallel billing systems with different data models, scattered workspace flags, and no clear plan lifecycle.

Current Issues

Problem	Details
Scattered workspace flags	`IsEnterprise`, `IsTrial`, `TrialStartDate`, `TrialEndDate`, `StripeActiveSubscriptionId`, `WorkspacePlan` -- 6 plan-related columns on workspace
1:1 enterprise plan	Only one `enterprise_plan` record per workspace. Renewal overwrites dates with no history
Invoices disconnected from plans	`workspace_invoice` links to workspace. `stripe_invoice` links to Stripe subscription. Neither links to a billing period
No trial management	Trial dates live on workspace, not on the plan. No admin-created trials
Two billing period sources	Stripe uses `current_period_start/end`. Enterprise uses `BillingPeriodStart/End`. Dashboard has priority logic to pick one
No automatic deactivation	Only auto-renew handles expiry. No system verifies non-renewing plans expire correctly
Cancel to meaningless default	When Stripe cancels, workspace gets plan=default with `DateTime.UtcNow` as both period start AND end
Redundant flags	`IsEnterprise` derivable from plan source. `IsTrial` derivable from plan status

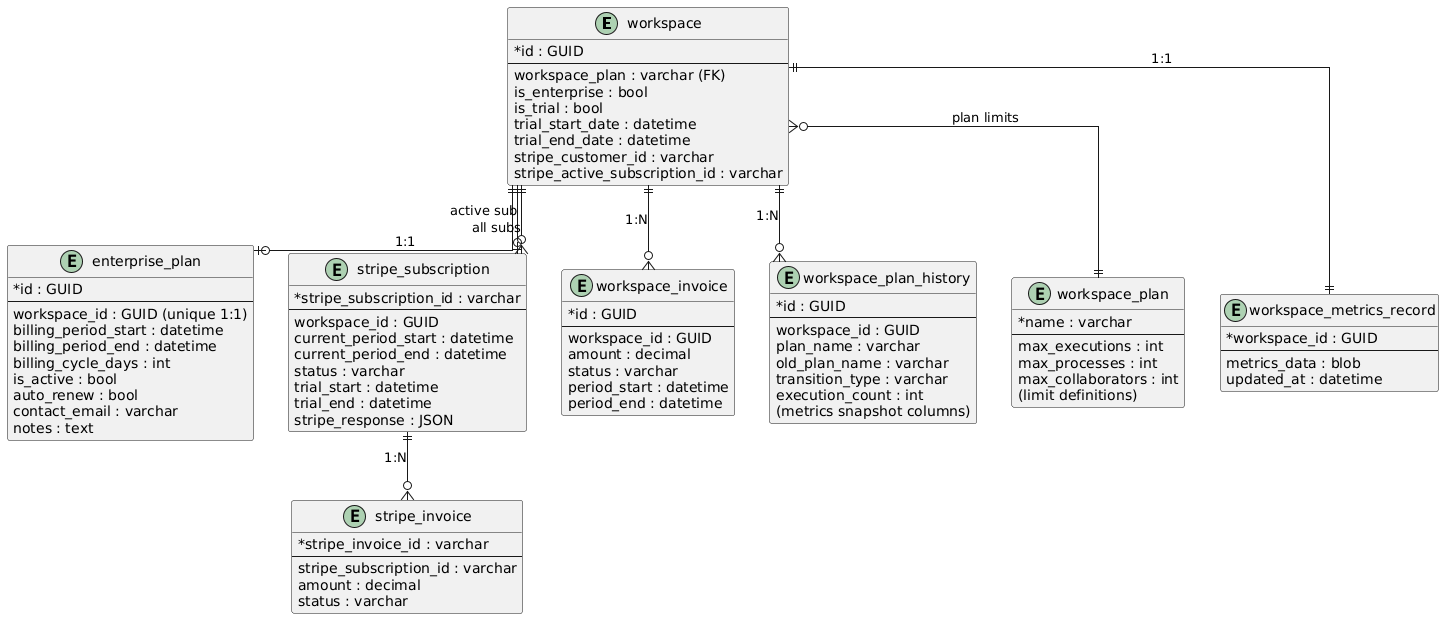

Current Data Model

Proposed Architecture

Core Concept

One unified workspace_subscription table replaces enterprise_plan, workspace_plan_history, and workspace_metrics_record. It tracks the full lifecycle of every billing period from any source: Stripe, Enterprise, or System.

Key principles:

A workspace has many subscriptions over time (1:N) but only one active at a time
The source field indicates who manages billing (stripe, enterprise, system)
Invoices belong to the subscription (billing period), not the workspace
Raw Stripe data stays in stripe_subscription / stripe_invoice as an audit mirror
workspace.ActiveWorkspacePlan remains as a denormalized plan tier for fast limit lookups
workspace.ActiveSubscriptionId provides one-hop access to the current subscription
Metrics are stored directly on the subscription record (live for active, frozen at deactivation)
Default plan is a real auto-renewing system subscription (30-day cycle)
Trial is a plan tier in workspace_plan with its own limits

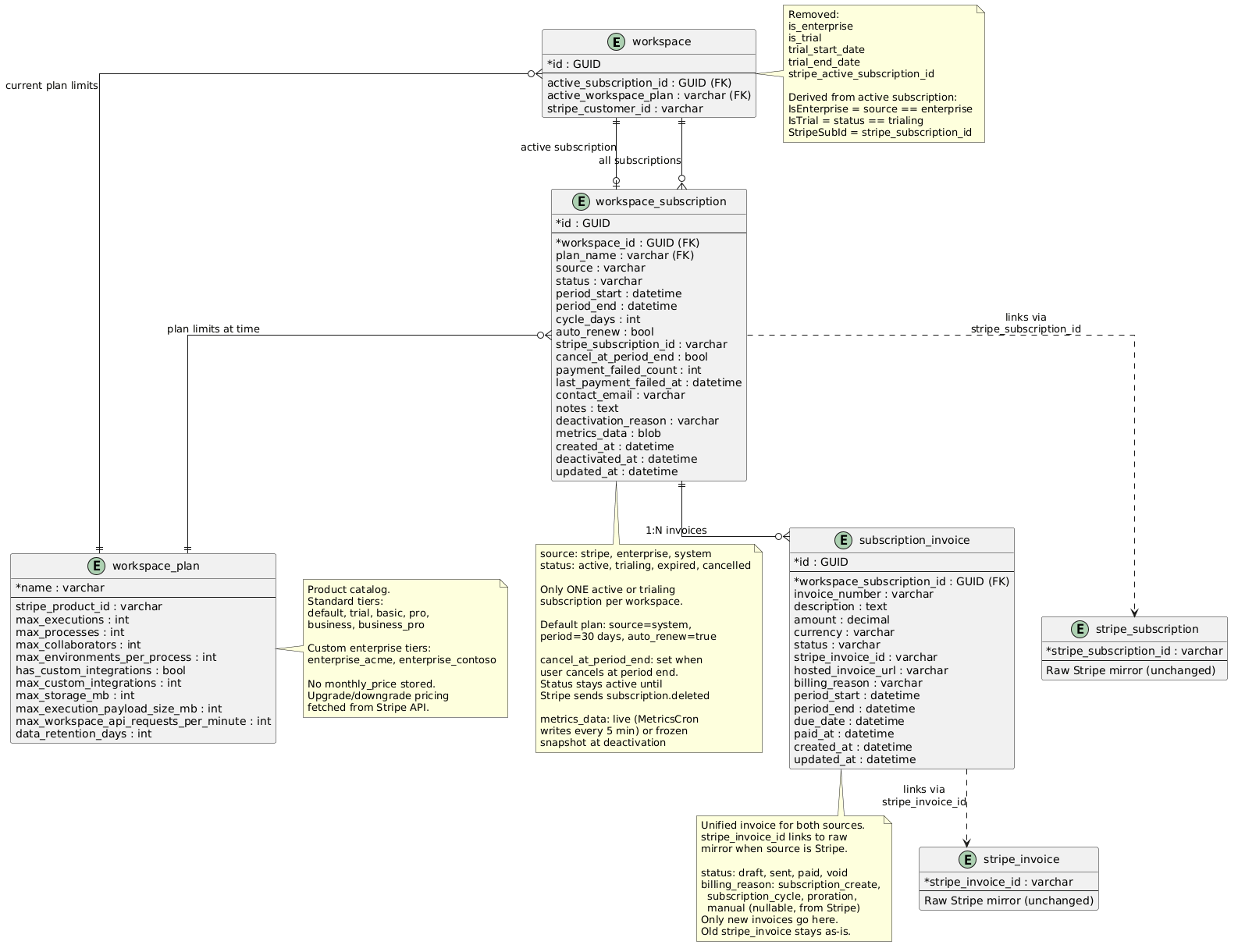

Proposed Data Model

Workspace Entity Changes

Column	Action	Reason
`IsEnterprise`	Remove	Derived: `ActiveSubscription.Source == "enterprise"`
`IsTrial`	Remove	Derived: `ActiveSubscription.Status == "trialing"`
`TrialStartDate`	Remove	Lives on `workspace_subscription.period_start`
`TrialEndDate`	Remove	Lives on `workspace_subscription.period_end`
`StripeActiveSubscriptionId`	Remove	Derived: `ActiveSubscription.StripeSubscriptionId`
`WorkspacePlan`	Rename	`ActiveWorkspacePlan` -- denormalized current tier for fast limit lookups
`StripeCustomerId`	Keep	Needed for Stripe API calls
`ActiveSubscriptionId`	Add	GUID FK to `workspace_subscription` -- one-hop access

Workspace Plan Changes

Column	Action	Reason
`stripe_product_id`	Add	Nullable varchar. Links to Stripe product for plan mapping
`cancel_at_period_end`	N/A	This goes on `workspace_subscription`, not plan
All limit columns	Keep	Unchanged

Note: monthly_price is NOT stored on the table. Pricing is fetched from the Stripe API at runtime for upgrade/downgrade decisions.

Plan Tiers

Name	Type	Monthly Price	Notes
`default`	Fixed	0	Free tier limits. Every workspace starts here
`trial`	Fixed	0	Trial experience limits. Used by both Stripe and admin trials
`basic`	Fixed	From Stripe	Standard tier
`pro`	Fixed	From Stripe	Standard tier
`business`	Fixed	From Stripe	Standard tier
`business_pro`	Fixed	From Stripe	Standard tier
`enterprise_*`	Custom	Admin-set	Custom per-customer limits. Admin creates rows in workspace_plan

Upgrade/Downgrade Logic

Replace the hardcoded PlanTier dictionary. Pricing is fetched from Stripe API, not stored locally.

Stripe plans: The StripeController already has IsUpgrade in the change-plan request. The client compares prices fetched from Stripe at checkout time. The server validates by fetching prices from Stripe API.

Enterprise plans: Admin always applies changes immediately. The admin UI doesn't need upgrade/downgrade distinction — every enterprise plan change is immediate. The deactivation_reason is set to plan_change.

// Stripe: client sends IsUpgrade flag, server validates via Stripe API
public async Task<string> ResolveStripeTransitionType(string oldPriceId, string newPriceId, CancellationToken ct)
{
    var priceService = new PriceService();
    var oldPrice = await priceService.GetAsync(oldPriceId, cancellationToken: ct);
    var newPrice = await priceService.GetAsync(newPriceId, cancellationToken: ct);
    return newPrice.UnitAmount > oldPrice.UnitAmount ? "upgrade"
         : newPrice.UnitAmount < oldPrice.UnitAmount ? "downgrade"
         : "plan_change";
}

// Enterprise: always immediate, reason=plan_change

Deactivation Reasons

When a subscription is deactivated, deactivation_reason records why:

Reason	When
`upgrade`	Plan changed to a higher-priced tier
`downgrade`	Plan changed to a lower-priced tier
`plan_change`	Plan changed to same-priced tier
`cancelled`	User or admin cancelled
`expired`	Period ended without renewal
`renewed`	Auto-renew created a new period
`replaced`	Different source took over (e.g., Stripe replaced enterprise)
`trial_ended`	Trial expired or converted to paid
NULL	Still active

Reading Subscription History

Query all subscriptions for a workspace ordered by created_at to see the full story:

Sub 1: plan=default, source=system, status=expired, reason=replaced, Jan 1 - Jan 31
Sub 2: plan=trial, source=enterprise, status=expired, reason=trial_ended, Feb 1 - Feb 14
Sub 3: plan=enterprise_acme, source=enterprise, status=expired, reason=renewed, Feb 14 - Mar 14
Sub 4: plan=enterprise_acme, source=enterprise, status=expired, reason=renewed, Mar 14 - Apr 14
Sub 5: plan=enterprise_acme, source=enterprise, status=cancelled, reason=cancelled, Apr 14 - Apr 20
Sub 6: plan=default, source=system, status=active, reason=NULL, Apr 20 - May 20

Tables Removed

Table	Replaced By
`enterprise_plan`	`workspace_subscription` where source=enterprise
`workspace_plan_history`	Deactivated subscription records with deactivation_reason
`workspace_metrics_record`	`workspace_subscription.metrics_data` (live on active, frozen on deactivated)
`workspace_invoice`	`subscription_invoice` (going forward only)

Subscription Lifecycle

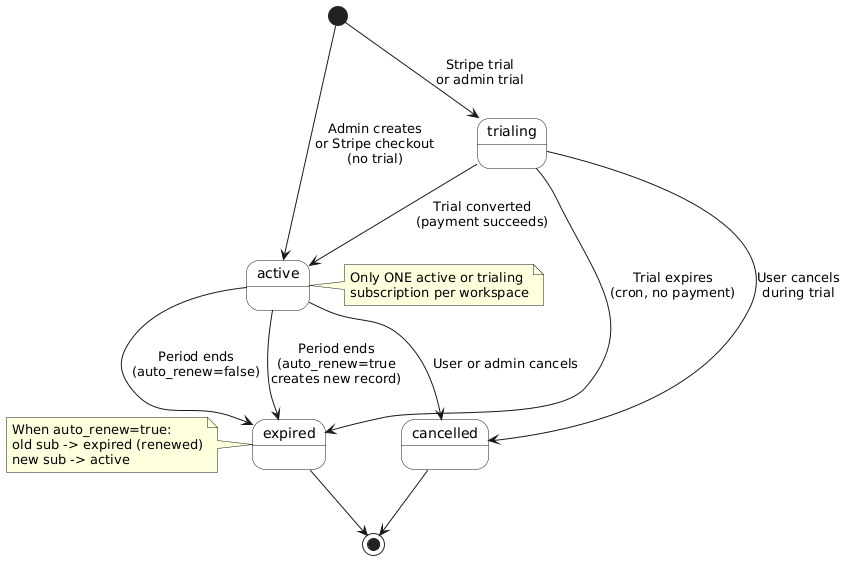

Status Transitions

Activation Rule

When a new subscription becomes active or trialing, all other active/trialing subscriptions for that workspace are deactivated. This single rule prevents conflicts.

Metrics Design

Metrics on Subscription

The metrics_data blob on workspace_subscription replaces the separate workspace_metrics_record table:

Subscription State	metrics_data Behavior
Active	MetricsComputationCron writes every 5 min. Overwritten with fresh computation. Always current
Deactivated	Frozen snapshot from the last cron run before deactivation. Never updated again. Read-only historical view

Metrics Period

Metrics are computed within the subscription period (period_start to period_end):

Concern	Period
Limit enforcement (max executions)	Subscription period. Resets on renewal
Execution and transaction counters	Subscription period
Charts (sessions over time, errors)	Subscription period. Dashboard provides time filters (7d, 30d, this period)
Sessions and logs	Current subscription period start to now
Snapshot at deactivation	Full subscription period metrics

Dashboard Period Navigator

Users can browse their subscription history to see metrics for each period:

[< Previous]   Feb 14 - Mar 14, 2026 (Enterprise Acme)   [Next >]

Current (active) subscription: live metrics from cron
Old (deactivated) subscriptions: frozen metrics_data snapshot, read-only
Navigation queries workspace_subscriptions ordered by created_at

Default Plan Metrics

Default subscriptions (source=system) auto-renew every 30 days. This means:

Free-tier users also accumulate monthly metric snapshots
They can navigate back to see last month usage
No special-casing for no plan. There is always a subscription

Trial Management

Trial Plan Tier

trial is a row in the workspace_plan table with defined limits:

workspace_plan:
  name: trial
  monthly_price: 0
  max_executions: 500
  max_processes: 10
  max_collaborators: 5
  ...

All trials use the same limits regardless of source or what plan the user will eventually subscribe to.

Stripe Trial

Trigger

User checks out on pricing page. Currently only "EW-FLOW Basic" plan gets a 7-day trial (configured via Stripe:TrailPlan in appsettings). Trial eligibility is checked by querying subscription history instead of the IsTrial workspace flag.

Trial Eligibility Check

// Replaces workspace.IsTrial flag
var hasTrialed = await context.WorkspaceSubscriptions
    .AnyAsync(s => s.WorkspaceId == workspaceId
        && s.Source == "stripe"
        && (s.Status == "trialing" || s.DeactivationReason == "trial_ended"), ct);

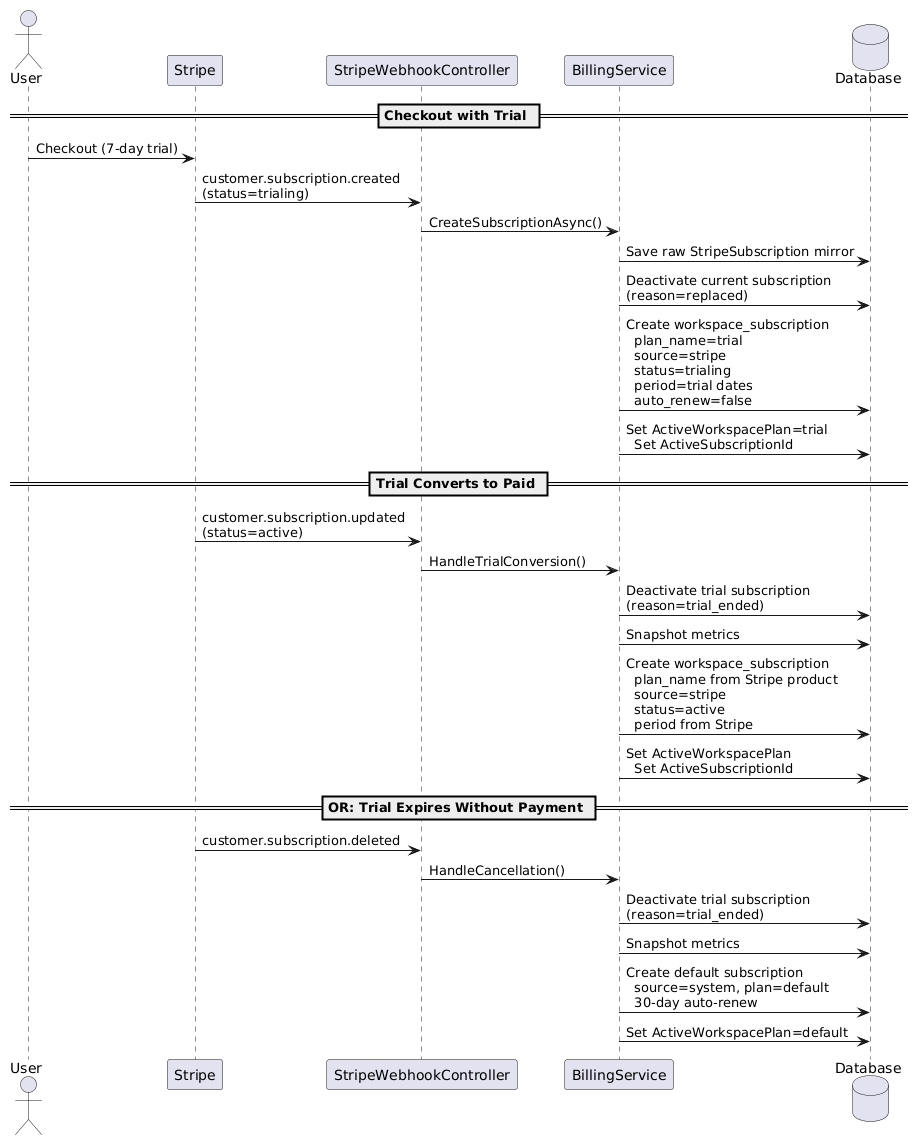

Webhook Flow

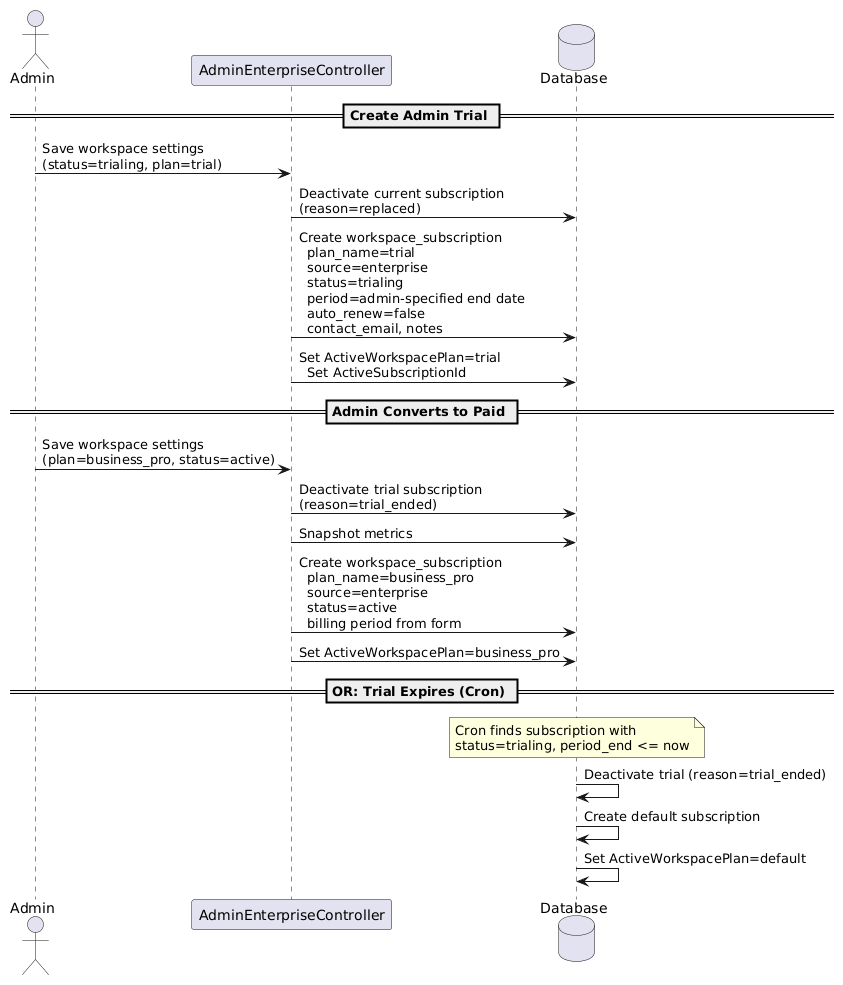

Admin Trial

Trigger

Admin creates trial for an enterprise prospect via the Manage dialog. No Stripe involvement.

Admin Flow

Trial Rules

Rule	Detail
Trial is a plan tier	Row in `workspace_plan` with specific limits
No auto-renew	Trials always have `auto_renew=false`. They do not renew into another trial
One active subscription	Existing active/trialing subscription is deactivated before creating trial
Multiple trials allowed	System does not prevent re-trials. Admin discretion. Stripe eligibility uses history check
Dashboard display	Purple/distinct bar, Trial badge, days remaining, Upgrade Now button

Trial Edge Cases

Scenario	Behavior
User on admin trial does Stripe checkout	`subscription.created` handler deactivates admin trial (reason=replaced). Stripe takes over
Admin creates enterprise for workspace with Stripe sub	UI warns that Stripe subscription is active. Admin should cancel in Stripe first
Stripe upgrade during trial	Stripe sends `subscription.updated` with `TrialEnd=now`. Handler deactivates trial, creates active subscription
Trial on a workspace that already trialed	Stripe: eligibility check prevents. Admin: allowed (admin decision)

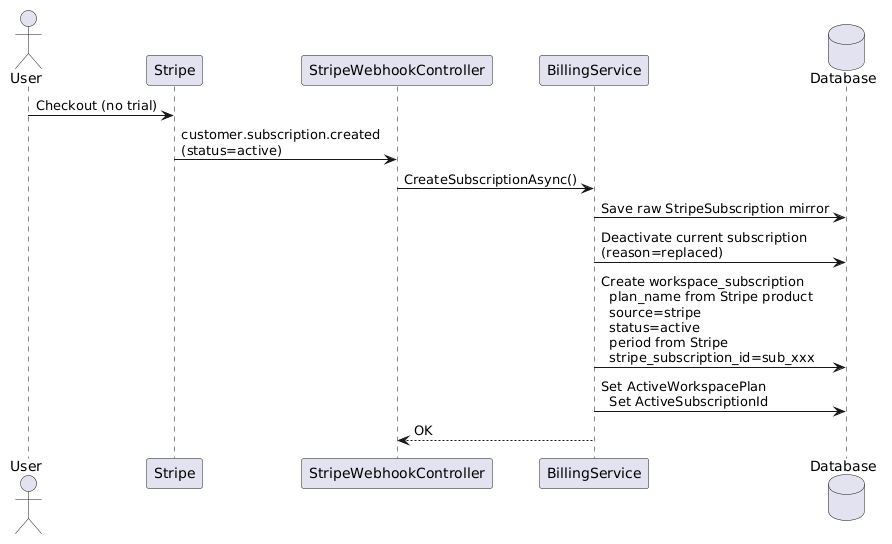

Flow: Stripe Checkout (No Trial)

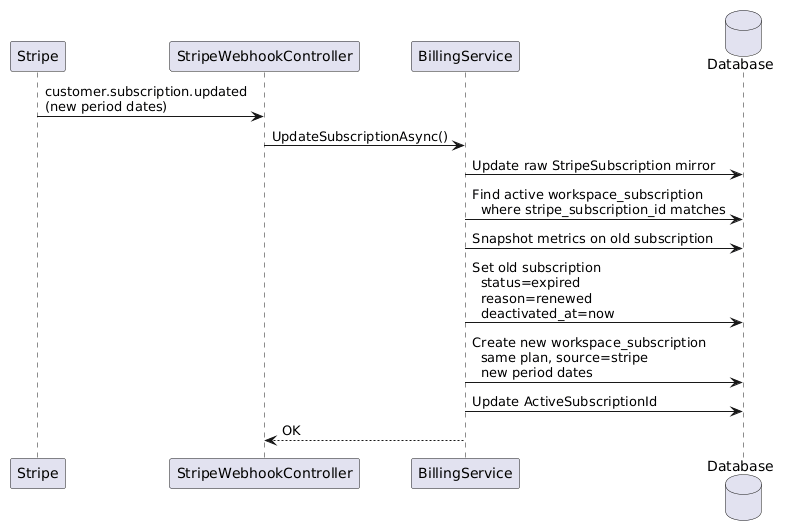

Flow: Stripe Period Renewal

When Stripe renews a subscription (new period via webhook), a new workspace_subscription record is created per cycle for full history.

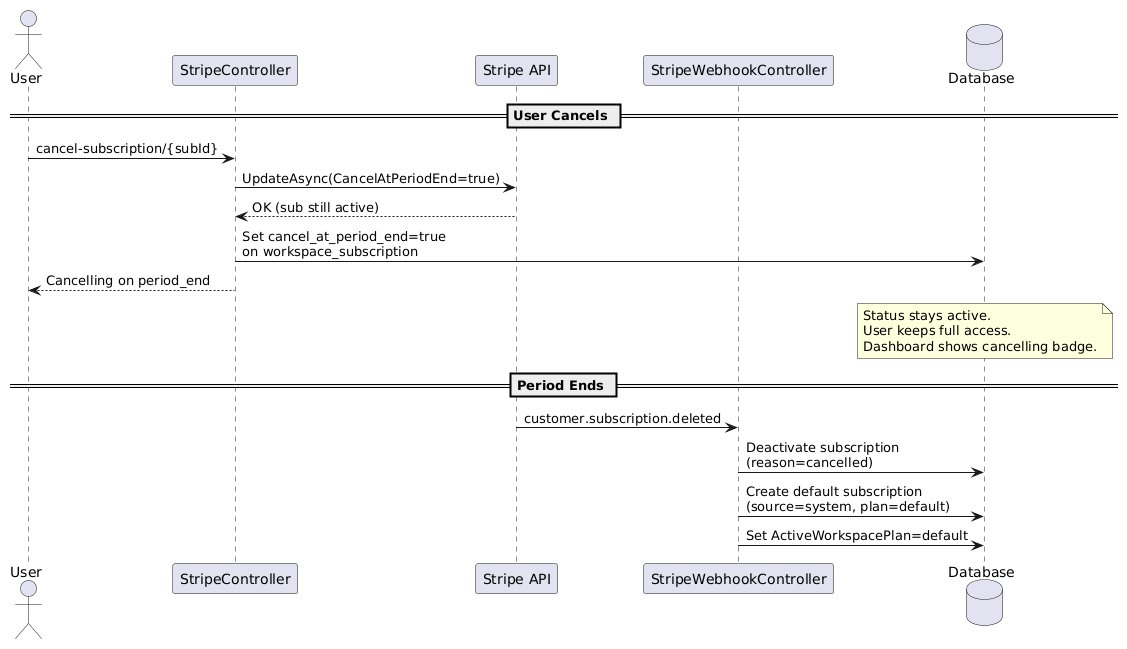

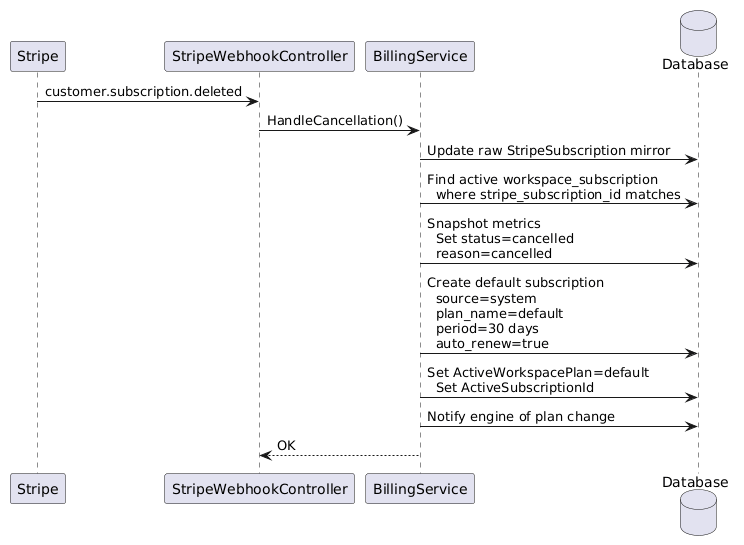

Flow: Stripe Cancellation

Stripe Deactivation Rules

When a workspace_subscription with source=stripe is deactivated locally, we may need to also cancel it in the Stripe API. The rule: if deactivation is NOT triggered by a Stripe webhook, and stripe_subscription_id is not null, cancel in Stripe.

Deactivation Scenarios

#	Trigger	Initiator	Stripe Sub State	Stripe API Call	Cancel Mode
1	`subscription.deleted` webhook	Stripe	Already cancelled	No (Stripe did it)	N/A
2	`subscription.updated` webhook (new period)	Stripe	Still active (new cycle)	No (sub continues)	N/A
3	`subscription.updated` webhook (trial to active)	Stripe	Still active (converted)	No (sub continues)	N/A
4	Admin switches to Enterprise	Admin	Still active, charging	Yes	Immediate
5	Admin creates trial replacing Stripe	Admin	Still active or trialing	Yes	Immediate
6	Admin locks/disables workspace	Admin	Still active	Yes	Immediate
7	Cron: Stripe sub expired, no webhook	System	Unknown/stale	Yes (safety)	Immediate
8	User self-cancels via billing portal	User	Still active	Yes	At period end

Cancel Modes

Mode	Stripe API Call	When Used
Immediate	`SubscriptionService.CancelAsync(subId)`	Admin replaces Stripe with enterprise. Stop charging now
At period end	`SubscriptionService.UpdateAsync(subId, CancelAtPeriodEnd=true)`	User self-cancels. Let them use what they paid for

Deactivation Origin

The deactivation method accepts an origin parameter to determine Stripe API behavior:

public enum DeactivationOrigin
{
    StripeWebhook,   // Stripe already handled it. No API call
    AdminAction,     // Admin did it. Cancel in Stripe immediately
    CronExpiry,      // Safety net. Cancel in Stripe immediately
    UserCancel       // User cancelled. Cancel at period end
}

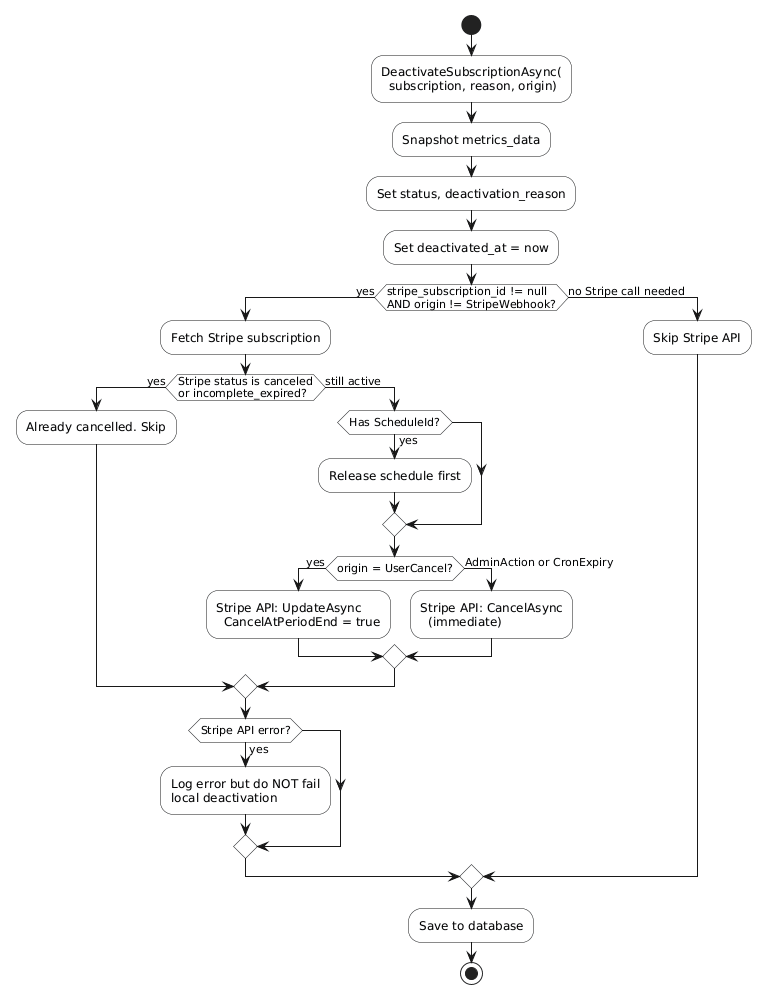

Deactivation Flow

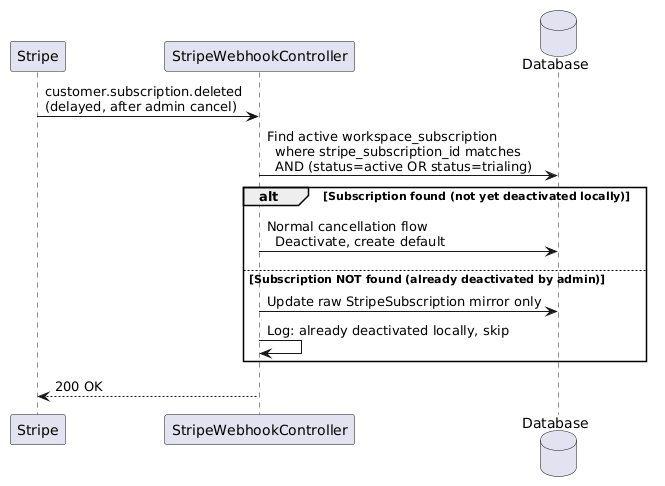

Handling Delayed Webhooks

After we cancel in Stripe (scenario 4-7), Stripe will eventually send a customer.subscription.deleted webhook. The webhook handler must handle this gracefully:

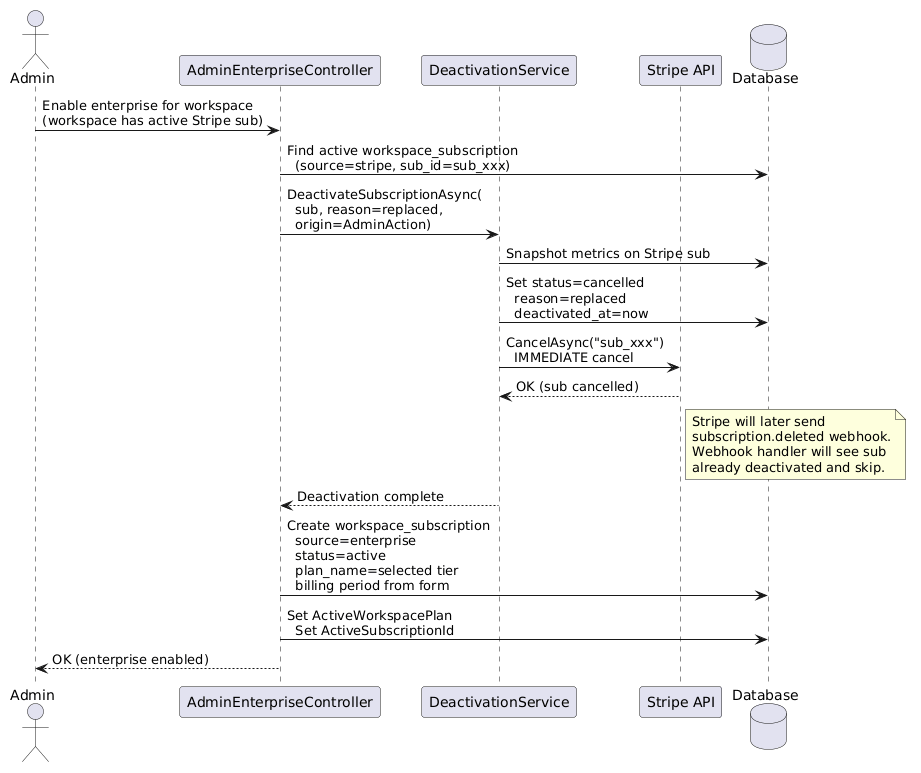

Flow: Admin Switches Stripe to Enterprise

This is the most common Stripe deactivation scenario. The admin enables enterprise for a workspace that has an active Stripe subscription:

Admin UI Warning

When admin opens the Manage dialog for a workspace with an active Stripe subscription, the UI should show a warning:

  This workspace has an active Stripe subscription (Pro plan, renews Mar 28).
  Enabling enterprise will IMMEDIATELY cancel the Stripe subscription.
  The customer will not be charged again by Stripe.

  [Confirm and Enable Enterprise]  [Cancel]

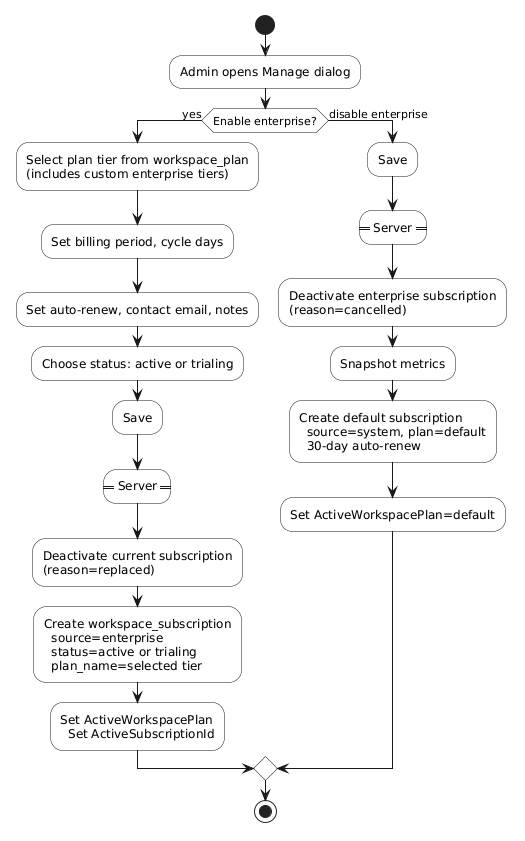

Flow: Admin Enterprise Management

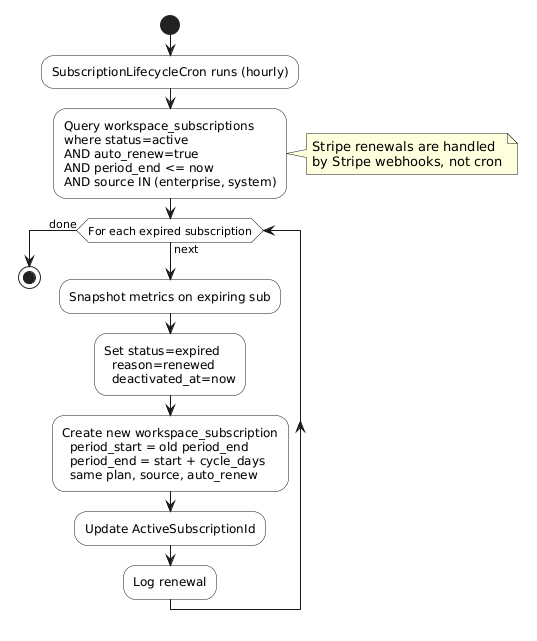

Flow: Auto-Renewal (Lifecycle Cron)

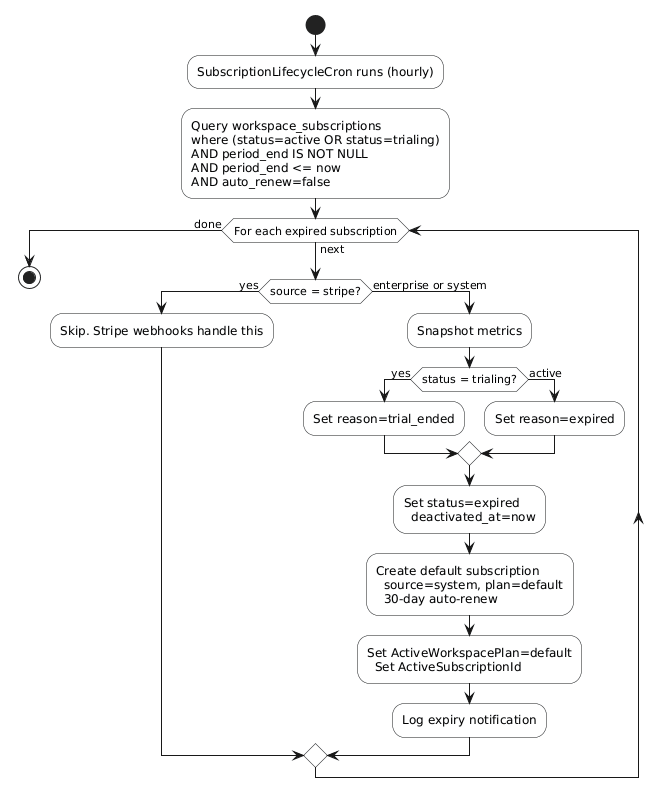

Flow: Expiry Check (Lifecycle Cron)

Verifies that non-renewing plans are properly deactivated when they expire. This is a new capability.

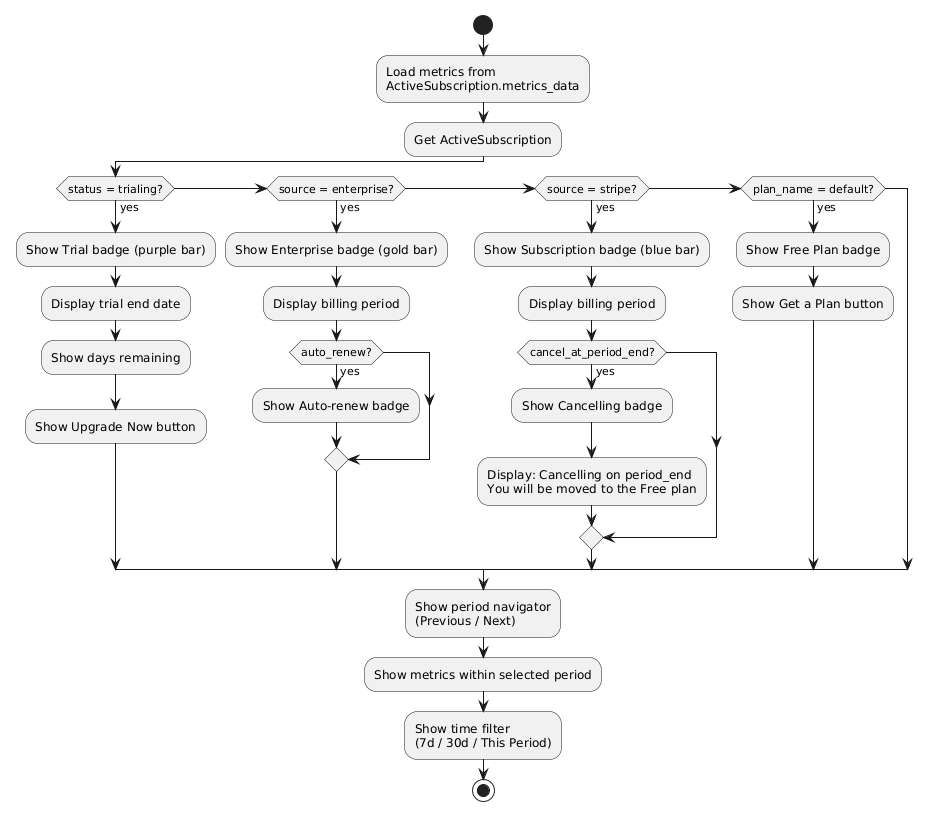

Dashboard Display

With the unified model, the dashboard reads from the active subscription without priority logic:

Convenience Properties (C# Entity)

public partial class Workspace
{
    // Stored columns
    public Guid? ActiveSubscriptionId { get; set; }
    public string ActiveWorkspacePlan { get; set; } = "default";
    public string? StripeCustomerId { get; set; }

    // Navigation
    public virtual WorkspaceSubscription? ActiveSubscription { get; set; }
    public virtual WorkspacePlan PlanLimits { get; set; } = null!;
    public virtual ICollection<WorkspaceSubscription> WorkspaceSubscriptions { get; set; } = new List<WorkspaceSubscription>();

    // Computed (not stored)
    [NotMapped] public bool IsEnterprise => ActiveSubscription?.Source == "enterprise";
    [NotMapped] public bool IsTrial => ActiveSubscription?.Status == "trialing";
    [NotMapped] public string? StripeActiveSubscriptionId => ActiveSubscription?.StripeSubscriptionId;
}

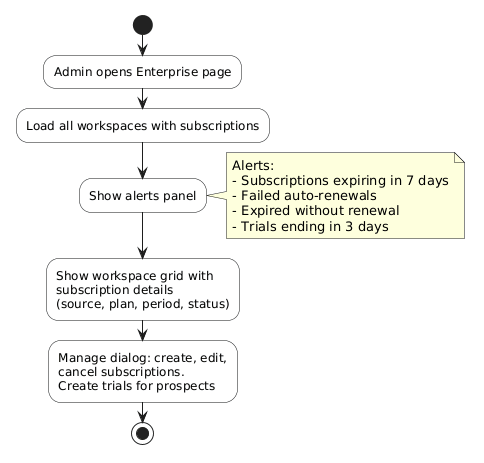

Admin Dashboard Enhancement

The admin enterprise page shows subscription health for proactive management:

Cron Architecture

The current single BillingPeriodMetricsCronService is split into two focused cron jobs:

Cron Job	Frequency	Responsibility
`MetricsComputationCron`	Every 5 min	Compute and write `metrics_data` to the active subscription for each workspace
`SubscriptionLifecycleCron`	Hourly	Auto-renewal, expiry check, trial expiry. Does not compute metrics

Why Split?

Metrics need near-real-time updates (dashboard displays live data)
Lifecycle events (renewal, expiry) don't need 5-min precision. Hourly is sufficient
Reduces DB query load: lifecycle cron only queries subscriptions near expiry, not all workspaces
Each cron is smaller, testable, and has a single responsibility

Registration

// Program.cs
scheduler.Schedule<MetricsComputationCron>()
    .EveryFiveMinutes();

scheduler.Schedule<SubscriptionLifecycleCron>()
    .Hourly();

scheduler.Schedule<DataRetentionCronService>()
    .DailyAtHour(3);

Cancel at Period End

When a user cancels their Stripe subscription via the billing portal, they keep access until the period ends. This uses the cancel_at_period_end field on workspace_subscription.

Flow

Webhook Update

When subscription.updated is received with cancel_at_period_end=true (Stripe sends this), update the field on the local subscription:

// In StripeWebhookController, customer.subscription.updated handler:
if (updatedSub.CancelAtPeriodEnd)
{
    localSub.CancelAtPeriodEnd = true;
    // Do NOT deactivate. Status stays active.
}

Workspace Creation — Default Subscription

When a new workspace is created, the creation endpoint also creates the initial default subscription. There is never a workspace without a subscription.

// In workspace creation endpoint:
var defaultSub = new WorkspaceSubscription
{
    Id = Guid.NewGuid(),
    WorkspaceId = workspace.Id,
    PlanName = "default",
    Source = "system",
    Status = "active",
    PeriodStart = DateTime.UtcNow,
    PeriodEnd = DateTime.UtcNow.AddDays(30),
    CycleDays = 30,
    AutoRenew = true,
    CreatedAt = DateTime.UtcNow
};
context.WorkspaceSubscriptions.Add(defaultSub);
workspace.ActiveSubscriptionId = defaultSub.Id;
workspace.ActiveWorkspacePlan = "default";

Concurrency — Preventing Duplicate Active Subscriptions

To prevent race conditions (e.g., Stripe webhook and admin action hitting simultaneously), a DB-level unique partial index ensures only one active/trialing subscription per workspace:

CREATE UNIQUE INDEX IX_workspace_subscription_active
ON workspace_subscription (workspace_id)
WHERE status IN ('active', 'trialing');

If a concurrent write attempts to create a second active subscription, the DB rejects it. The application catches the constraint violation and handles it:

try
{
    await context.SaveChangesAsync(ct);
}
catch (DbUpdateException ex) when (IsUniqueViolation(ex))
{
    // Another process already created an active subscription.
    // Reload and skip or retry.
    logger.LogWarning("Concurrent subscription creation for workspace {Id}. Skipping.", workspaceId);
}

Stripe Downgrade via Webhook

Stripe downgrades are handled by the existing SubscriptionSchedule code in StripeController. The proposal does NOT add scheduled_plan_name fields to workspace_subscription. Instead:

User requests downgrade in billing UI
StripeController creates a SubscriptionSchedule in Stripe (current plan until period end, then new plan)
Stripe manages the schedule. No local tracking of the pending change
At period end, Stripe applies the new plan and sends customer.subscription.updated with the new price/product
Webhook handler: deactivate old subscription (reason=downgrade), create new subscription with lower plan

The downgrade is fully managed by Stripe. Our system reacts to the webhook event.

Enterprise downgrades are always immediate — admin changes the plan and it takes effect now. Deactivate old (reason=plan_change), create new.

API Endpoints

New Endpoints

Method	Endpoint	Auth	Purpose
`GET`	`/api/subscriptions/history`	WorkspaceMember	List all subscriptions for the current workspace (period navigator)
`GET`	`/api/subscriptions/{id}/metrics`	WorkspaceMember	Get metrics for a specific subscription (current or historical)
`GET`	`/api/workspace-plans`	Administrator	List all plan tiers (for admin dynamic dropdown)
`POST`	`/api/workspace-plans`	Administrator	Create custom enterprise plan tier
`PUT`	`/api/workspace-plans/{name}`	Administrator	Edit plan tier limits

Updated Endpoints

Method	Endpoint	Change
`GET`	`/api/metrics/billing-period`	Read from `ActiveSubscription.metrics_data` instead of `workspace_metrics_record`
`POST`	`/api/admin/enterprise/save-workspace-settings`	Rewrite to use `workspace_subscription` instead of `enterprise_plan`
`POST`	`/api/stripe/cancel-subscription/{id}`	Set `cancel_at_period_end=true` on `workspace_subscription`
`POST`	`/api/stripe/change-plan`	Use Stripe API for price comparison. Create/deactivate subscriptions on webhook

Removed Endpoints (replaced by unified subscription management)

Endpoint	Replaced By
`/api/admin/enterprise/change-plan`	`save-workspace-settings`
`/api/admin/enterprise/renew-plan`	Auto-renewal via cron
`/api/admin/enterprise/dismiss-plan`	`save-workspace-settings` (disable enterprise)
`/api/admin/enterprise/toggle-enterprise`	`save-workspace-settings`

Notification Service

A dedicated SubscriptionNotificationService receives all subscription lifecycle triggers. Each trigger maps to a specific method that handles the notification logic.

Service Interface

public interface ISubscriptionNotificationService
{
    Task OnTrialExpiringAsync(Guid workspaceId, DateTime expiresAt, CancellationToken ct);
    Task OnTrialExpiredAsync(Guid workspaceId, CancellationToken ct);
    Task OnSubscriptionCancelledAsync(Guid workspaceId, string planName, CancellationToken ct);
    Task OnAutoRenewalFailedAsync(Guid workspaceId, string planName, string error, CancellationToken ct);
    Task OnPlanChangedAsync(Guid workspaceId, string oldPlan, string newPlan, string changeType, CancellationToken ct);
    Task OnSubscriptionExpiringAsync(Guid workspaceId, DateTime expiresAt, CancellationToken ct);
    Task OnCancelAtPeriodEndAsync(Guid workspaceId, DateTime periodEnd, CancellationToken ct);
    Task OnPaymentFailedAsync(Guid workspaceId, int attemptNumber, CancellationToken ct);
}

Trigger Points

Event	Trigger Location	Method
Trial expiring in 3 days	`SubscriptionLifecycleCron`	`OnTrialExpiringAsync`
Trial expired	`SubscriptionLifecycleCron`	`OnTrialExpiredAsync`
Subscription cancelled	`DeactivateSubscriptionAsync`	`OnSubscriptionCancelledAsync`
Auto-renewal failed	`SubscriptionLifecycleCron`	`OnAutoRenewalFailedAsync`
Plan upgraded/downgraded/changed	`BillingService` or `AdminController`	`OnPlanChangedAsync`
Subscription expiring in 7 days	`SubscriptionLifecycleCron`	`OnSubscriptionExpiringAsync`
User cancels at period end	`StripeController`	`OnCancelAtPeriodEndAsync`
Stripe payment failed	`StripeWebhookController` (`invoice.payment_failed`)	`OnPaymentFailedAsync`
Stripe trial ending in 3 days	`StripeWebhookController` (`trial_will_end`)	`OnTrialExpiringAsync`

Implementation (Phase 1)

Initial implementation logs all events. Actual email/in-app delivery is a follow-up:

public class SubscriptionNotificationService(
    ILogger<SubscriptionNotificationService> logger,
    EmailSender emailSender,
    WilsonCoreContext context) : ISubscriptionNotificationService
{
    public async Task OnTrialExpiringAsync(Guid workspaceId, DateTime expiresAt, CancellationToken ct)
    {
        var workspace = await context.Workspaces
            .Include(w => w.WorkspaceUserRoles)
            .FirstOrDefaultAsync(w => w.Id == workspaceId, ct);

        var owner = workspace?.WorkspaceUserRoles
            .FirstOrDefault(r => r.Role == "owner");

        logger.LogInformation(
            "Trial expiring for workspace {Id} on {Date}. Owner: {Owner}",
            workspaceId, expiresAt, owner?.UserId);

        // TODO: Send email to workspace owner
        // TODO: In-app notification
    }

    // ... similar pattern for each method
}

A-Cube E-Invoicing & Smart Receipts

The platform uses the A-Cube Stripe App for Italian e-invoicing compliance. A-Cube reads customer data from the Stripe Customer object and automatically generates e-invoices or Smart Receipts based on the available fields.

A-Cube Prerequisites

Setting	Value	Purpose
Allow B2C invoices	ON	Enables e-invoices for B2C customers who provide `fiscal_code`
Smart Receipts	Activated	Fallback for B2C customers without `fiscal_code` (requires appointment + enable in settings)

Customer Classification & Invoice Routing

Case	Country	Tax ID	Fiscal Code	A-Cube Output
IT B2B	IT	✅ VAT provided	Not needed	e-Invoice
IT B2C (with CF)	IT	❌	✅ Provided (optional)	B2C e-Invoice
IT B2C (without CF)	IT	❌	❌ Not provided	Smart Receipt (corrispettivo)
Intl B2B	non-IT	✅ Tax ID provided	Not needed	Cross-border e-Invoice
Intl B2C (with CF)	non-IT	❌	✅ Provided (optional)	e-Invoice
Intl B2C (without CF)	non-IT	❌	❌ Not provided	Smart Receipt

Note: split_payment is not implemented — no Italian public administration (PA) customers expected.

Stripe Customer Fields (A-Cube Requirements)

A-Cube reads the following from the Stripe Customer object:

Field	Source	Required	Notes
`customer.name`	Checkout (`CustomerUpdate.Name = "auto"`)	✅ Always	Auto-saved from checkout
`customer.address`	Checkout (`BillingAddressCollection = "required"`)	✅ Always	`address.country` determines IT vs non-IT routing
`customer.tax_ids`	Checkout (`TaxIdCollection.Enabled = true`)	B2B only	VAT/Tax ID collected at checkout
`customer.metadata.fiscal_code`	Checkout custom field → webhook	Optional	Saved on `checkout.session.completed`
`customer.metadata.codice_destinatario`	Checkout custom field → webhook	Optional	IT default: `0000000`, non-IT default: `XXXXXXX`

Checkout Session Configuration

The checkout session collects all required data for A-Cube compliance:

var options = new SessionCreateOptions
{
    // ... line items, mode, customer ...

    // ✅ Address + Name → auto-saved to Customer
    BillingAddressCollection = "required",
    CustomerUpdate = new SessionCustomerUpdateOptions
    {
        Address = "auto",
        Name = "auto",
    },

    // ✅ B2B: VAT/Tax ID collection
    TaxIdCollection = new SessionTaxIdCollectionOptions { Enabled = true },
    AutomaticTax = new SessionAutomaticTaxOptions { Enabled = true },

    // ✅ B2C: Fiscal code + Codice Destinatario (both optional)
    CustomFields = new List<SessionCustomFieldOptions>
    {
        new SessionCustomFieldOptions
        {
            Key = "fiscal_code",
            Label = new SessionCustomFieldLabelOptions
            {
                Type = "custom",
                Custom = "Codice Fiscale (for Italian invoices)"
            },
            Type = "text",
            Text = new SessionCustomFieldTextOptions
            {
                MinimumLength = 11,
                MaximumLength = 16
            },
            Optional = true
        },
        new SessionCustomFieldOptions
        {
            Key = "codice_destinatario",
            Label = new SessionCustomFieldLabelOptions
            {
                Type = "custom",
                Custom = "Codice Destinatario / SDI (optional, for Italian businesses)"
            },
            Type = "text",
            Text = new SessionCustomFieldTextOptions
            {
                MinimumLength = 7,
                MaximumLength = 7
            },
            Optional = true
        }
    },
};

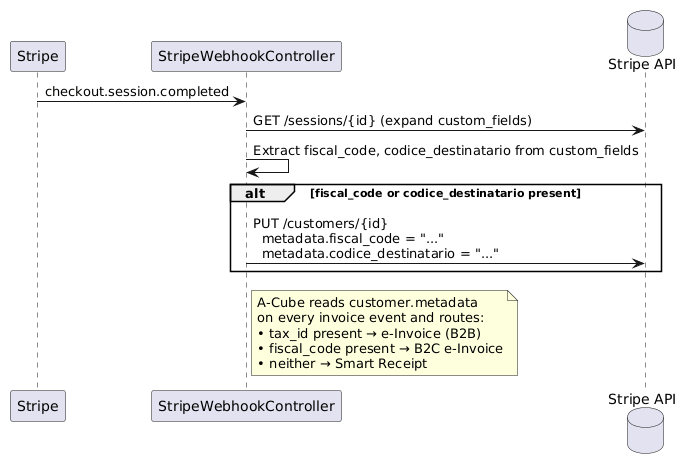

Webhook: Save Custom Fields to Customer Metadata

On checkout.session.completed, read custom fields and save to Stripe Customer metadata so A-Cube can access them on every future invoice:

private async Task HandleCheckoutCompleted(Stripe.Checkout.Session session)
{
    var sessionService = new Stripe.Checkout.SessionService();
    var fullSession = await sessionService.GetAsync(session.Id);

    var fiscalCode = fullSession.CustomFields?
        .FirstOrDefault(f => f.Key == "fiscal_code")?.Text?.Value;
    var codiceDestinatario = fullSession.CustomFields?
        .FirstOrDefault(f => f.Key == "codice_destinatario")?.Text?.Value;

    var metadata = new Dictionary<string, string>();
    if (!string.IsNullOrEmpty(fiscalCode))
        metadata["fiscal_code"] = fiscalCode;
    if (!string.IsNullOrEmpty(codiceDestinatario))
        metadata["codice_destinatario"] = codiceDestinatario;

    if (metadata.Count > 0)
    {
        var customerService = new CustomerService();
        await customerService.UpdateAsync(session.CustomerId,
            new CustomerUpdateOptions { Metadata = metadata });
    }
}

Current Implementation vs Required Changes

Area	Current State	Required Change
`fiscal_code` custom field	✅ Already at checkout (optional)	No change
`codice_destinatario` custom field	❌ Not collected	Add as optional custom field (7 chars)
`checkout.session.completed` handler	✅ Saves `fiscal_code` to metadata	Update: also save `codice_destinatario`
A-Cube "Allow B2C invoices"	Unknown	Verify setting is ON
A-Cube Smart Receipts	Unknown	Activate (appointment + settings)
`split_payment`	❌ Not needed	Skip — no PA customers
Billing portal	✅ Stripe portal for updates	No change (tax_id and address editable there)

Timing: Customer Data Before First Invoice

For charge_automatically subscriptions, Stripe finalizes the first invoice at checkout. The CustomerUpdate = { Address = "auto", Name = "auto" } option ensures address and name are written to the Customer object during the checkout flow, before the invoice is finalized. This satisfies A-Cube's requirement that customer data is present when the invoice is processed.

Custom field metadata (fiscal_code, codice_destinatario) is saved via webhook after checkout. Since A-Cube processes invoices asynchronously (not at finalization time), the metadata is available by the time A-Cube reads the invoice.

Stripe Integration Gaps

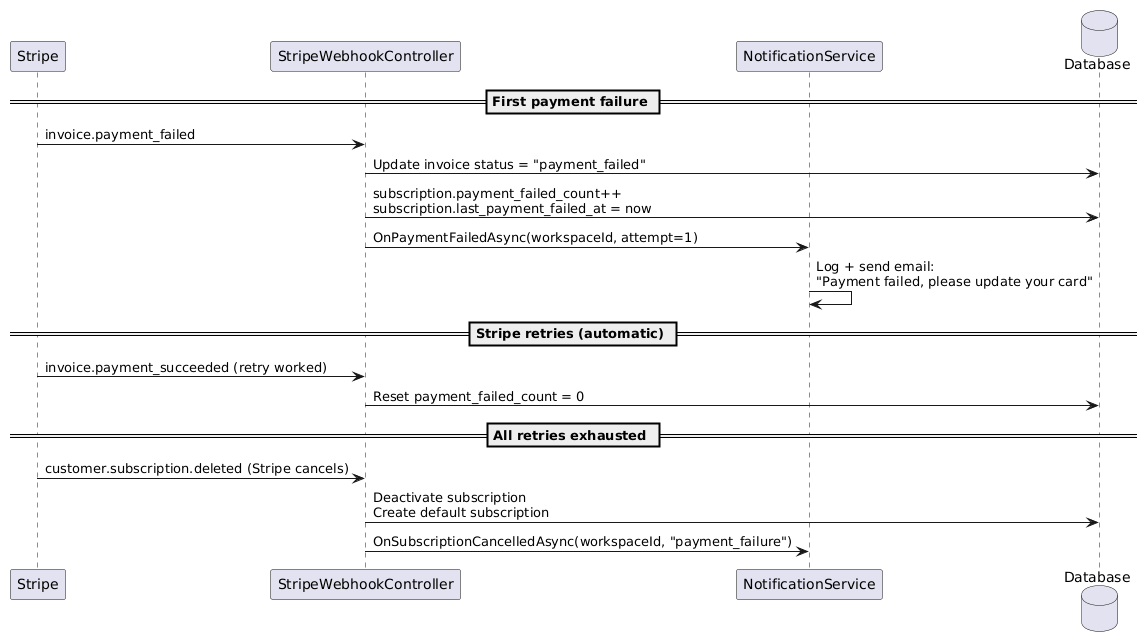

1. Payment Failure Recovery / Dunning (Critical)

Problem: When invoice.payment_failed fires, the handler only updates the invoice status locally. No user notification, no dashboard warning, no grace period, no degradation after repeated failures.

Proposed Solution:

Stripe-Side Configuration

Configure Stripe's built-in retry logic (Smart Retries) in the Stripe Dashboard:

Retry schedule: 3 attempts over 7 days (Stripe default)
After all retries fail: Cancel subscription (Stripe setting: subscription_status_after_all_retries = canceled)

Webhook Handling

Add payment_failed_count and last_payment_failed_at to workspace_subscription:

Dashboard Warning

When payment_failed_count > 0 and status is still active:

⚠️ Payment failed — please update your payment method to avoid service interruption.
[Update Payment Method] → Stripe Billing Portal

New Fields on `workspace_subscription`

Field	Type	Purpose
`payment_failed_count`	`int`	Number of consecutive failed payment attempts
`last_payment_failed_at`	`DateTime?`	Timestamp of last failure

2. Webhook Idempotency (Critical)

Problem: If Stripe retries a webhook (timeout, 5xx), the handler could create duplicate StripeSubscription, StripeInvoice, or StripePayment records.

Proposed Solution:

Store processed Stripe event IDs and check before processing:

private async Task<IActionResult> Post(CancellationToken ct)
{
    // ... signature verification ...

    // Idempotency check
    var eventId = stripeEvent.Id;
    var alreadyProcessed = await context.StripeWebhookEvents
        .AnyAsync(e => e.StripeEventId == eventId, ct);

    if (alreadyProcessed)
    {
        logger.LogInformation("Skipping duplicate Stripe event {EventId}", eventId);
        return Ok(); // Return 200 so Stripe doesn't retry
    }

    try
    {
        await HandleStripeEventAsync(stripeEvent, ct);

        // Record processed event
        context.StripeWebhookEvents.Add(new StripeWebhookEvent
        {
            StripeEventId = eventId,
            EventType = stripeEvent.Type,
            ProcessedAt = DateTime.UtcNow
        });
        await context.SaveChangesAsync(ct);

        return Ok();
    }
    catch (Exception ex)
    {
        logger.LogError(ex, "Failed processing Stripe event {EventId} ({EventType})",
            eventId, stripeEvent.Type);
        return StatusCode(500); // Stripe will retry
    }
}

New Table: `stripe_webhook_event`

Column	Type	Notes
`stripe_event_id`	`VARCHAR(255)` PK	Stripe event ID (e.g., `evt_1234`)
`event_type`	`VARCHAR(100)`	e.g., `invoice.payment_failed`
`processed_at`	`DATETIME`	When we processed it

Cleanup: DataRetentionCronService can purge events older than 30 days (Stripe won't retry after ~72 hours).

3. Trial Will End Webhook (High)

Problem: No handler for customer.subscription.trial_will_end. Stripe sends this 3 days before trial ends. Users get no warning.

Proposed Solution:

Add webhook handler that triggers the existing ISubscriptionNotificationService:

case "customer.subscription.trial_will_end":
    if (stripeEvent.Data.Object is Subscription trialEndingSub)
    {
        var workspace = await context.Workspaces
            .FirstOrDefaultAsync(w => w.StripeActiveSubscriptionId == trialEndingSub.Id, ct);

        if (workspace != null && trialEndingSub.TrialEnd.HasValue)
        {
            await notificationService.OnTrialExpiringAsync(
                workspace.Id, trialEndingSub.TrialEnd.Value, ct);
        }
    }
    break;

This integrates directly with the ISubscriptionNotificationService.OnTrialExpiringAsync already designed in the Notification Service section.

Note: This is in addition to the cron-based trial expiry check. The webhook gives a Stripe-triggered notification, while the cron handles enterprise/system trials.

4. Refund Handling (High)

Problem: No charge.refunded webhook handler. Refunds issued from Stripe Dashboard aren't reflected locally. Also, bug on line 487 where AmountRefunded uses AmountCaptured instead of AmountRefunded.

Proposed Solution:

Bug Fix

// StripeController.cs line 487 — BUG
AmountRefunded = Math.Round(request.AmountCaptured / 100m, 2), // ❌ WRONG

// Fix:
AmountRefunded = Math.Round(request.AmountRefunded / 100m, 2), // ✅ CORRECT

New Webhook Handler

case "charge.refunded":
    if (stripeEvent.Data.Object is Charge refundedCharge)
    {
        var payment = await context.StripePayments
            .FirstOrDefaultAsync(p => p.StripeChargeId == refundedCharge.Id, ct);

        if (payment != null)
        {
            payment.AmountRefunded = Math.Round(refundedCharge.AmountRefunded / 100m, 2);
            payment.Refunded = refundedCharge.Refunded;  // true if fully refunded
            payment.Status = refundedCharge.Status;       // "succeeded" still, check Refunded flag
            payment.UpdatedAt = DateTime.UtcNow;
            payment.StripeResponse = JsonSerializer.Serialize(refundedCharge);
            await context.SaveChangesAsync(ct);

            logger.LogInformation("Processed refund for charge {ChargeId}. " +
                "Refunded: {Amount}", refundedCharge.Id, refundedCharge.AmountRefunded);
        }
    }
    break;

Invoice Status Update

If the charge relates to an invoice, also update the invoice status:

if (!string.IsNullOrEmpty(refundedCharge.InvoiceId))
{
    var invoice = await context.StripeInvoices
        .FirstOrDefaultAsync(i => i.StripeInvoiceId == refundedCharge.InvoiceId, ct);

    if (invoice != null)
    {
        // Re-fetch from Stripe to get updated amounts
        var invoiceService = new InvoiceService();
        var freshInvoice = await invoiceService.GetAsync(refundedCharge.InvoiceId);
        invoice.AmountPaid = Math.Round(freshInvoice.AmountPaid / 100m, 2);
        invoice.AmountRemaining = Math.Round(freshInvoice.AmountRemaining / 100m, 2);
        invoice.Status = freshInvoice.Status;
        invoice.UpdatedAt = DateTime.UtcNow;
        await context.SaveChangesAsync(ct);
    }
}

5. Subscription Reactivation Endpoint (High)

Problem: If a user cancels (cancel_at_period_end = true) and then changes their mind, there's no way to undo the cancellation.

Proposed Solution:

New endpoint in StripeController:

[HttpPost("reactivate-subscription/{subscriptionId}")]
public async Task<IActionResult> ReactivateSubscription(
    string subscriptionId, CancellationToken cancellationToken = default)
{
    try
    {
        var subService = new SubscriptionService();
        var sub = await subService.GetAsync(subscriptionId, cancellationToken: cancellationToken);

        if (!sub.CancelAtPeriodEnd)
            return BadRequest("Subscription is not pending cancellation.");

        var updated = await subService.UpdateAsync(subscriptionId,
            new SubscriptionUpdateOptions { CancelAtPeriodEnd = false },
            cancellationToken: cancellationToken);

        return Ok(new
        {
            SubscriptionId = updated.Id,
            Status = updated.Status,
            CancelAtPeriodEnd = updated.CancelAtPeriodEnd
        });
    }
    catch (StripeException ex)
    {
        return BadRequest(new { error = ex.Message });
    }
}

Frontend Change (Invoices.razor)

When isPlanCancelRequested == true, show a "Reactivate" button:

@if (isPlanCancelRequested)
{
    <SfButton CssClass="rounded-1 btn fw-medium text-sm py-8 px-8"
              OnClick="@(async () => await ReactivateSubscription(subscriptionId))"
              Content="Undo Cancellation — Keep My Plan" />
    <p class="text-body-secondary text-xs mt-1">
        Your subscription is scheduled to cancel at the end of the billing period.
    </p>
}

Webhook Sync

The customer.subscription.updated webhook will automatically fire when cancel_at_period_end flips back to false, updating the local workspace_subscription.cancel_at_period_end field.

6. Dead Code Cleanup (High)

Problem: 5 methods in StripeController have no HTTP route attribute and are unreachable via HTTP. They duplicate logic now handled by BillingService (called from webhooks).

Methods to Remove:

Method	Line	Reason
`CreateStripeCustomer`	437	Duplicate of webhook-based customer handling
`CreateStripeCharge`	475	Replaced by `BillingService.CreateStripeChargeAsync`
`UpdateStripeCharge`	519	Replaced by `BillingService.UpdateStripeChargeAsync`
`CreateSubscription`	559	Replaced by `BillingService.CreateSubscriptionAsync`
`CreateInvoice`	655	Replaced by `BillingService.CreateInvoiceAsync`

Also has unreachable UpdateSubscription (line 619) and UpdateInvoice (line 697) with [HttpPut] but no specific route — these conflict with UpdateCustomer which also uses [HttpPut]. Only UpdateCustomer is actually called from the frontend.

Action: Remove all 7 dead methods during Phase 3 backend refactoring. All their functionality lives in BillingService.

Updated Webhook Events (Complete List)

After implementing the above gaps, the full webhook handler will cover:

Event	Handler	Status
`charge.succeeded`	`BillingService.CreateStripeChargeAsync`	✅ Existing
`charge.refunded`	Update `StripePayment` + `StripeInvoice`	🆕 New
`checkout.session.completed`	Save fiscal_code + codice_destinatario to metadata	✅ Existing (update)
`customer.updated`	`BillingService.UpdateCustomerAsync`	✅ Existing
`customer.subscription.created`	`BillingService.CreateSubscriptionAsync`	✅ Existing
`customer.subscription.updated`	Plan transition + cancel_at_period_end sync	✅ Existing
`customer.subscription.deleted`	Deactivate → default subscription	✅ Existing
`customer.subscription.trial_will_end`	`NotificationService.OnTrialExpiringAsync`	🆕 New
`invoice.created`	`BillingService.CreateInvoiceAsync`	✅ Existing
`invoice.payment_succeeded`	`BillingService.UpdateInvoiceAsync` + reset failed count	✅ Existing (update)
`invoice.payment_failed`	Update invoice + increment failed count + notify	✅ Existing (update)
`invoice_payment.paid`	Link charge to invoice/subscription	✅ Existing

Migration Plan

Phase 1: Database Schema

Add stripe_product_id column to workspace_plan
Add trial row to workspace_plan
Create workspace_subscription table (includes cancel_at_period_end, payment_failed_count, last_payment_failed_at fields)
Create subscription_invoice table (includes billing_reason field)
Create stripe_webhook_event table (idempotency tracking)
Add active_subscription_id column to workspace (nullable)
Rename workspace_plan FK column on workspace to active_workspace_plan
Add unique partial index IX_workspace_subscription_active for concurrency safety

Phase 2: Data Migration

For each workspace with an active enterprise_plan: create workspace_subscription with source=enterprise
For each workspace with an active Stripe subscription: create workspace_subscription with source=stripe
For all other workspaces: create workspace_subscription with source=system, plan=default, 30-day auto-renew
Set active_subscription_id on each workspace to point to the created subscription
Copy workspace_metrics_record.metrics_data to each active subscription metrics_data
Migrate workspace_invoice records to subscription_invoice (link to correct subscription)

Phase 3: Backend Code

Create WorkspaceSubscription and SubscriptionInvoice EF entities
Add EF mappings in WilsonCoreContext
Add convenience properties to Workspace entity
Update BillingService to create workspace_subscription on Stripe events
Split BillingPeriodMetricsCronService into:
- MetricsComputationCron (every 5 min): write metrics to ActiveSubscription.metrics_data
- SubscriptionLifecycleCron (hourly): auto-renewal, expiry check, trial expiry, notification triggers
Update WorkspacePlanService: use Stripe API for price-based transition type resolution
Update AdminEnterpriseController to use workspace_subscription
Update StripeWebhookController:
- Find workspace by subscription link instead of StripeActiveSubscriptionId
- Handle cancel_at_period_end on subscription.updated
- Handle delayed webhooks (skip if already deactivated locally)
Create ISubscriptionNotificationService with trigger methods
Create DeactivateSubscriptionAsync with DeactivationOrigin enum for Stripe API cancellation logic
Update workspace creation to create initial default subscription
Add new API endpoints: subscription history, plan management
Update CreateCheckoutSession: add codice_destinatario custom field
Update HandleCheckoutCompleted: save both fiscal_code and codice_destinatario to customer metadata
Add webhook idempotency: check stripe_webhook_event before processing, record after
Add charge.refunded webhook handler: update StripePayment + StripeInvoice
Add customer.subscription.trial_will_end webhook handler → NotificationService.OnTrialExpiringAsync
Update invoice.payment_failed handler: increment payment_failed_count, trigger OnPaymentFailedAsync
Update invoice.payment_succeeded handler: reset payment_failed_count to 0
Add reactivate-subscription/{id} endpoint: set cancel_at_period_end = false
Fix bug: AmountRefunded uses AmountCaptured (StripeController line 487)
Add OnPaymentFailedAsync method to ISubscriptionNotificationService

Phase 4: Frontend

Update Dashboard.razor:
- Read from ActiveSubscription instead of priority logic
- Add period navigator (Previous / Next)
- Add time filter (7d / 30d / This Period)
Update AdminEnterprise.razor:
- Plan dropdown reads from workspace_plan table (dynamic, includes custom tiers)
- Add trial creation (status=trialing)
- Add subscription health alerts panel
Remove all IsEnterprise / IsTrial flag checks -- use source/status instead
Add payment failure warning banner on dashboard when payment_failed_count > 0
Add "Undo Cancellation" / reactivation button on Invoices.razor when cancel_at_period_end = true

Phase 5: Cleanup

Remove IsEnterprise, IsTrial, TrialStartDate, TrialEndDate, StripeActiveSubscriptionId from workspace entity and database
Drop enterprise_plan table
Drop workspace_plan_history table
Drop workspace_metrics_record table
Drop workspace_invoice table (replaced by subscription_invoice)
Remove PlanMap hardcoded dictionaries from BillingService and StripeWebhookController (use workspace_plan.stripe_product_id mapping)
Remove PlanTier dictionary from WorkspacePlanService (replaced by Stripe API price lookup)
Remove old endpoints: change-plan, renew-plan, dismiss-plan, toggle-enterprise
Remove FrontEndStatsCronService (if still present, commented out)
Remove Stripe:TrailPlan config key from appsettings
Remove 7 dead methods from StripeController (CreateStripeCustomer, CreateStripeCharge, UpdateStripeCharge, CreateSubscription, UpdateSubscription, CreateInvoice, UpdateInvoice)

File Impact Summary

File	Change
`WorkflowEngineLibrary/Core/Models/Workspace.cs`	Remove 5 columns, rename WorkspacePlan, add ActiveSubscriptionId, add computed properties
`WorkflowEngineLibrary/Core/Models/WorkspaceSubscription.cs`	New entity (includes cancel_at_period_end)
`WorkflowEngineLibrary/Core/Models/SubscriptionInvoice.cs`	New entity (includes billing_reason)
`WorkflowEngineLibrary/Core/Models/WorkspacePlan.cs`	Add stripe_product_id
`WorkflowDatabase/WilsonCoreContext.cs`	Add new entity mappings, update Workspace mapping, unique partial index
`Server/Services/Implementations/BillingService.cs`	Create workspace_subscription on Stripe events, DeactivateSubscriptionAsync
`Server/Services/Implementations/MetricsComputationCron.cs`	New — extracted from BillingPeriodMetricsCronService (every 5 min)
`Server/Services/Implementations/SubscriptionLifecycleCron.cs`	New — renewal, expiry, trial expiry, notification triggers (hourly)
`Server/Services/Implementations/SubscriptionNotificationService.cs`	New — handles all subscription lifecycle notifications
`Server/Services/Implementations/WorkspacePlanService.cs`	Use Stripe API for price comparison, remove PlanTier dictionary
`Server/Controllers/AdminEnterpriseController.cs`	Rewrite to use workspace_subscription
`WorkflowEngineLibrary/Core/Models/StripeWebhookEvent.cs`	New entity for webhook idempotency tracking
`Server/Controllers/StripeWebhookController.cs`	Idempotency check, find workspace via subscription link, handle cancel_at_period_end, delayed webhooks, codice_destinatario, charge.refunded, trial_will_end, payment failure tracking
`Server/Controllers/Workspace/StripeController.cs`	Trial eligibility, cancel_at_period_end, codice_destinatario, reactivate-subscription endpoint, remove 7 dead methods, fix AmountRefunded bug
`Server/Controllers/Workspace/SubscriptionController.cs`	New — subscription history and metrics endpoints
`Server/Controllers/Admin/WorkspacePlanController.cs`	New — CRUD for workspace_plan tiers
`Client/Pages/Dashboard.razor`	Read from ActiveSubscription, cancel_at_period_end badge, period nav, time filter, payment failure warning
`Client/Pages/Invoices.razor`	Add reactivation button when cancel_at_period_end = true
`Client/Pages/AdminEnterprise.razor`	Dynamic plan dropdown, trial creation, health alerts
`Shared/Models/EnterpriseModels.cs`	Rename to SubscriptionModels, update DTOs
`Shared/Models/BillingPeriodMetrics.cs`	Simplify: single SubscriptionInfo
`Server/Program.cs`	Register new crons, notification service

Problem Statement​

Current Issues​

Current Data Model​

Proposed Architecture​

Core Concept​

Proposed Data Model​

Workspace Entity Changes​

Workspace Plan Changes​

Plan Tiers​

Upgrade/Downgrade Logic​

Deactivation Reasons​

Reading Subscription History​

Tables Removed​

Subscription Lifecycle​

Status Transitions​

Activation Rule​

Metrics Design​

Metrics on Subscription​

Metrics Period​

Dashboard Period Navigator​

Default Plan Metrics​

Trial Management​

Trial Plan Tier​

Stripe Trial​

Trigger​

Trial Eligibility Check​

Webhook Flow​

Admin Trial​

Trigger​

Admin Flow​

Trial Rules​

Trial Edge Cases​

Flow: Stripe Checkout (No Trial)​

Flow: Stripe Period Renewal​

Flow: Stripe Cancellation​

Stripe Deactivation Rules​

Deactivation Scenarios​

Cancel Modes​

Deactivation Origin​

Deactivation Flow​

Handling Delayed Webhooks​

Flow: Admin Switches Stripe to Enterprise​

Admin UI Warning​

Flow: Admin Enterprise Management​

Flow: Auto-Renewal (Lifecycle Cron)​

Flow: Expiry Check (Lifecycle Cron)​

Dashboard Display​

Convenience Properties (C# Entity)​

Admin Dashboard Enhancement​

Cron Architecture​

Why Split?​

Registration​

Cancel at Period End​

Flow​

Webhook Update​

Workspace Creation — Default Subscription​

Concurrency — Preventing Duplicate Active Subscriptions​

Stripe Downgrade via Webhook​

API Endpoints​

New Endpoints​

Updated Endpoints​

Removed Endpoints (replaced by unified subscription management)​

Notification Service​

Service Interface​

Trigger Points​

Implementation (Phase 1)​

A-Cube E-Invoicing & Smart Receipts​

A-Cube Prerequisites​

Customer Classification & Invoice Routing​

Stripe Customer Fields (A-Cube Requirements)​

Checkout Session Configuration​

Webhook: Save Custom Fields to Customer Metadata​

Current Implementation vs Required Changes​

Timing: Customer Data Before First Invoice​

Stripe Integration Gaps​

1. Payment Failure Recovery / Dunning (Critical)​

Stripe-Side Configuration​

Webhook Handling​

Dashboard Warning​

New Fields on workspace_subscription​

Problem Statement

Current Issues

Current Data Model

Proposed Architecture

Core Concept

Proposed Data Model

Workspace Entity Changes

Workspace Plan Changes

Plan Tiers

Upgrade/Downgrade Logic

Deactivation Reasons

Reading Subscription History

Tables Removed

Subscription Lifecycle

Status Transitions

Activation Rule

Metrics Design

Metrics on Subscription

Metrics Period

Dashboard Period Navigator

Default Plan Metrics

Trial Management

Trial Plan Tier

Stripe Trial

Trigger

Trial Eligibility Check

Webhook Flow

Admin Trial

Trigger

Admin Flow

Trial Rules

Trial Edge Cases

Flow: Stripe Checkout (No Trial)

Flow: Stripe Period Renewal

Flow: Stripe Cancellation

Stripe Deactivation Rules

Deactivation Scenarios

Cancel Modes

Deactivation Origin

Deactivation Flow

Handling Delayed Webhooks

Flow: Admin Switches Stripe to Enterprise

Admin UI Warning

Flow: Admin Enterprise Management

Flow: Auto-Renewal (Lifecycle Cron)

Flow: Expiry Check (Lifecycle Cron)

Dashboard Display

Convenience Properties (C# Entity)

Admin Dashboard Enhancement

Cron Architecture

Why Split?

Registration

Cancel at Period End

Flow

Webhook Update

Workspace Creation — Default Subscription

Concurrency — Preventing Duplicate Active Subscriptions

Stripe Downgrade via Webhook

API Endpoints

New Endpoints

Updated Endpoints

Removed Endpoints (replaced by unified subscription management)

Notification Service

Service Interface

Trigger Points

Implementation (Phase 1)

A-Cube E-Invoicing & Smart Receipts

A-Cube Prerequisites

Customer Classification & Invoice Routing

Stripe Customer Fields (A-Cube Requirements)

Checkout Session Configuration

Webhook: Save Custom Fields to Customer Metadata

Current Implementation vs Required Changes

Timing: Customer Data Before First Invoice

Stripe Integration Gaps

1. Payment Failure Recovery / Dunning (Critical)

Stripe-Side Configuration

Webhook Handling

Dashboard Warning

New Fields on `workspace_subscription`
